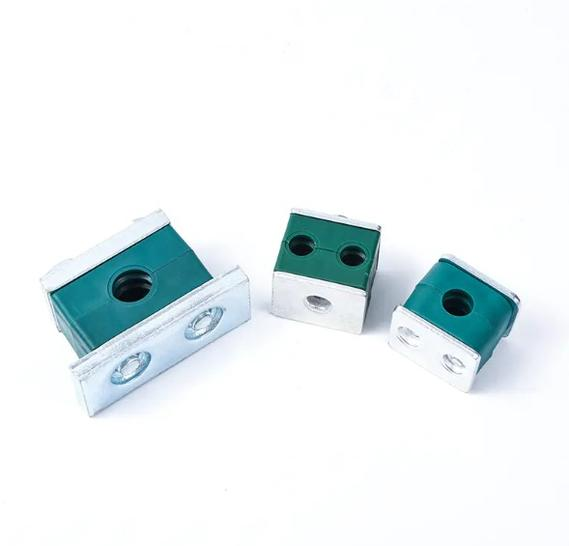

What are the two basic structures of Hydraulic Steel Pipe Clamp?

The adjustable chuck is a key component in the Hydraulic Steel Pipe Clamp, which is mainly responsible for clamping and fixing the pipe. This design allows the pipe clamp to adapt to pipes of different diameters, increasing its practicality and flexibility. The adjustable chuck is usually made of metal (such as stainless steel or alloy steel) to ensure that it has sufficient strength and durability. The chuck is designed with adjustable clamping mechanisms such as bolts, nuts or springs, which allow users to adjust according to the actual size of the pipe. The external shape and size of the chuck may vary depending on the brand and model, but they are usually designed to be easy to install and remove.
When it is necessary to fix the pipe, the user first places the pipe in the chuck and adjusts the clamping mechanism to clamp the pipe tightly. By rotating the bolt or nut, the size of the clamping force can be adjusted to ensure that the pipe is firmly fixed. In some designs, the chuck may also be equipped with a locking mechanism to prevent loosening under vibration or external force.
The threaded pipe is another important component in the hydraulic pipe clamp, which works with the adjustable chuck to achieve the fixation of the pipe. Threaded pipes are usually made of metal, which has high strength and wear resistance. The outside of the pipe is designed with threads, which match the internal threads on the adjustable chuck or other fixtures. The length and diameter of the threaded pipe may vary depending on the application requirements to adapt to the layout and space constraints of different pipelines.
The threaded pipe is connected to the adjustable chuck or other fixture by rotation. During the rotation process, the threads gradually bite, generating sufficient tightening force to fix the pipe. Users can adjust its tightening degree by rotating the threaded pipe to adapt to the needs of different pipes. In some designs, the threaded pipe may also be equipped with seals or gaskets to prevent liquid or gas leakage.
In practical applications, the adjustable chuck and the threaded pipe together constitute the basic structure of the hydraulic pipe clamp. Users can choose the appropriate pipe clamp model and size according to the size, shape and layout requirements of the pipe. By adjusting the clamping mechanism of the chuck and rotating the threaded pipe, the pipe can be firmly clamped and fixed. This design makes the hydraulic pipe clamp have a wide range of applications and adaptability, and can play an important role in many industries such as machine tools, metallurgy, mining, heavy machinery, engineering machinery, construction machinery, ships, agricultural machinery, etc.
