9C 9D VKA Female plug

9C 9D VKA Female plug

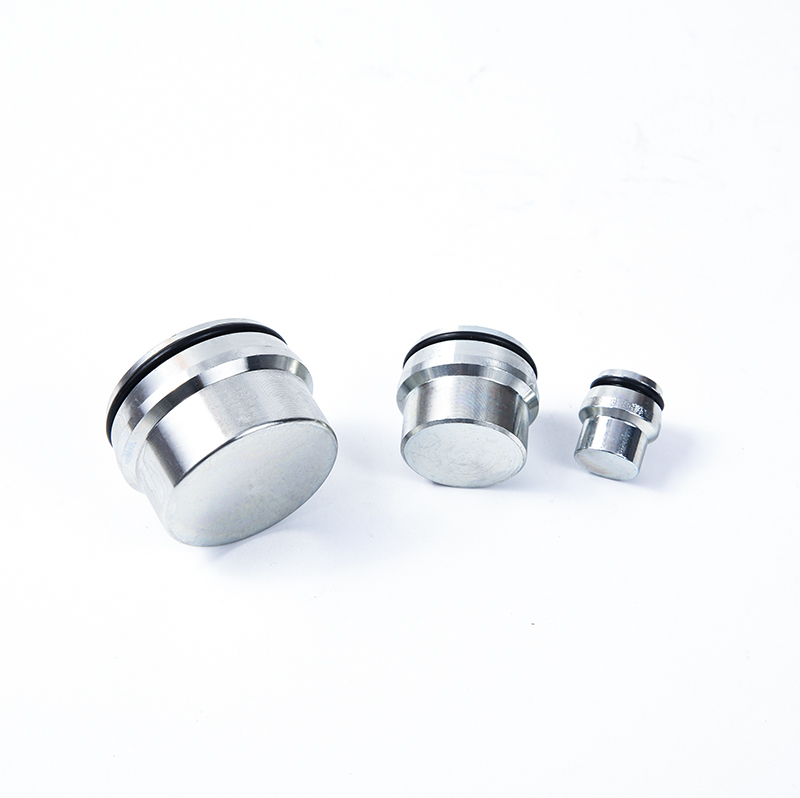

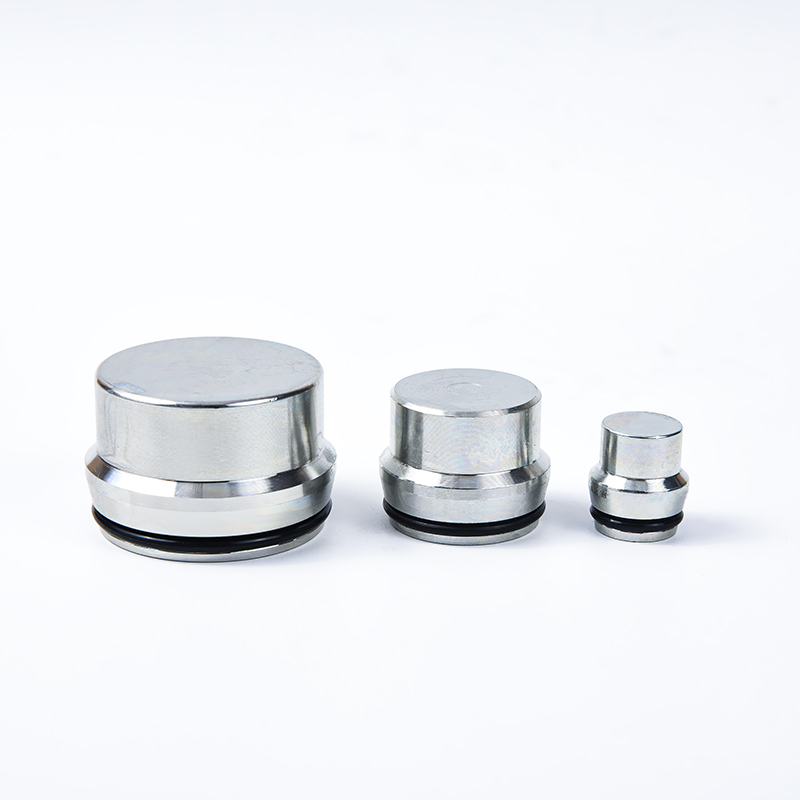

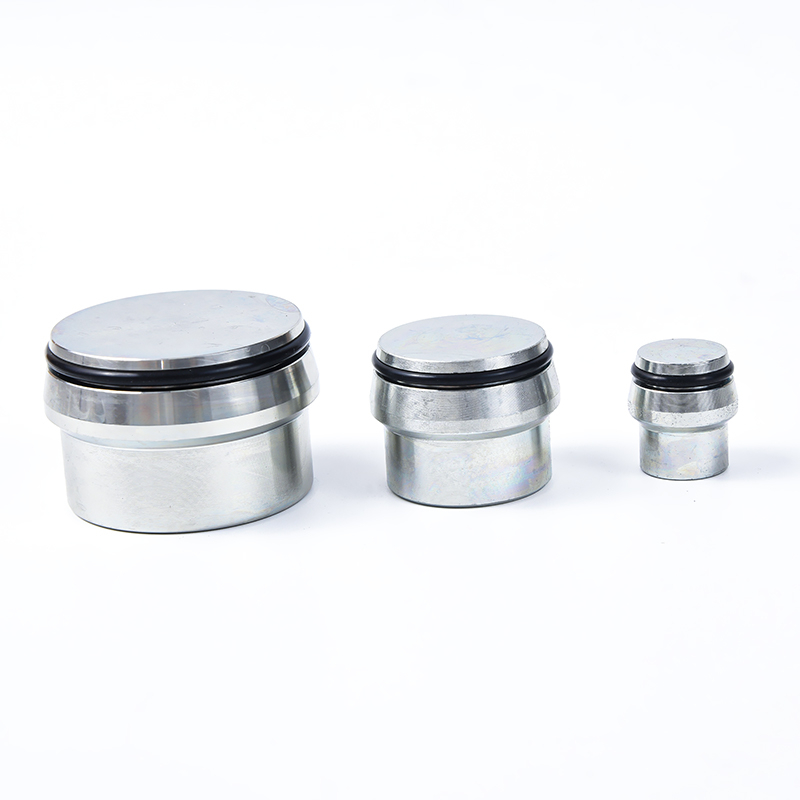

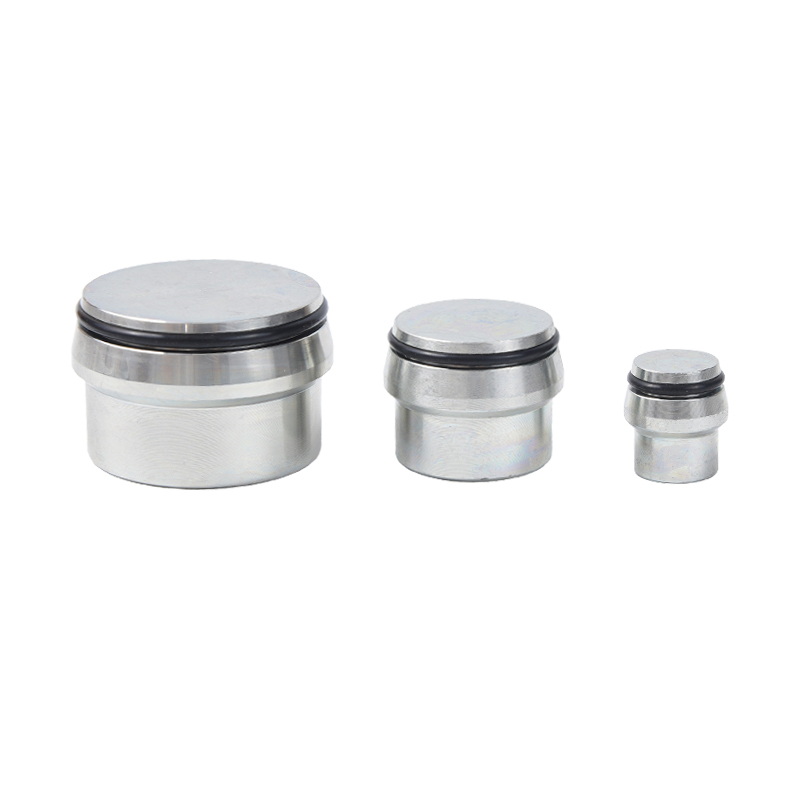

9C 9D VKA 24° tapered plug with O-ring seal, to be used with a ferrule nut for closing pipe joints, according to international standards: DIN 3861/ISO 8434, available with standard pipe diameters 24° tapered light connection (DIN 2353) 06L-42L, 24° tapered heavy connection (DIN 2353) 06S-38S, pressure range up to 630bar/9000PSI.
+86-0574-62687101 / +86 13362460879 Contact Us
  • 9C 9D VKA Female plug
  • 9C 9D VKA Female plug
  • 9C 9D VKA Female plug
  • Description
  • Inquiry

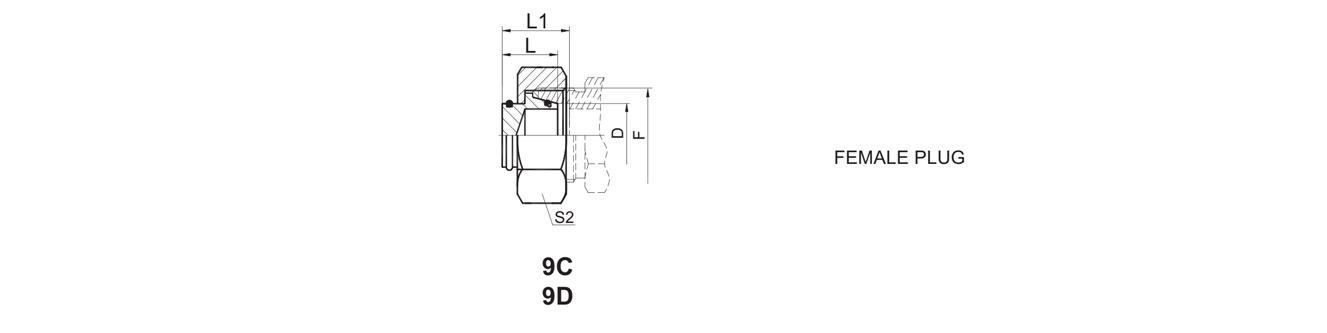

  • PART NO. THREAD TUBE O.D. DIMENSIONS MPa
    F D L L1 s2
    9C-12 M12x1.5 6 15.5 17.5 14 31.5L
    9C-14 M14x1.5 8 15.5 18 17
    9c-16 M16x1.5 10 16.5 18 19
    9C-18 M18x1.5 12 18 19.5 22
    9C-22 M22x1.5 15 19.5 20 27
    9C-26 M26x1.5 18 20 22 32
    9c-30 M30x2 22 21.5 22.5 36 16L
    9C-36 M36Xx2 28 22.5 24.5 41
    9C-45 M45x2 35 25 29 55
    9C-52 M52x2 42 27 31.5 60
    9D-14 M14x1.5 6 16 18 17 63S
    9D-16 M16x1.5 8 16.5 18.5 19
    9D-18 M18x1.5 10 18 20 22
    9D-20 M20x1.5 12 18.5 20.5 24
    9D-22 M22x1.5 14 19 21.5 27
    9D-24 M24x1.5 16 18.5 21.5 30 40S
    9D-30 M30x2 20 22.5 25 36
    9D-36 M36x2 25 23.5 28.5 46
    9D-42 M42x2 30 25.5 32 50
    9D-52 M52x2 38 26.5 36 60 31.5S

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 9C 9D VKA Female plug suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 9C 9D VKA Female plug in bulk.
