2WC 2WD SKA Din bite type tube fittings

2WC 2WD SKA Din bite type tube fittings

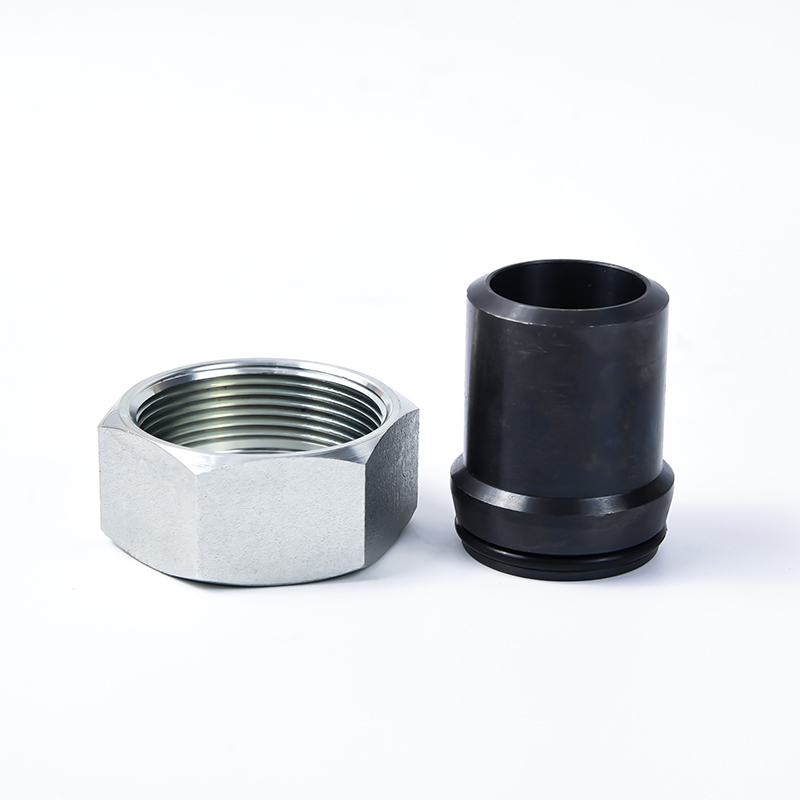

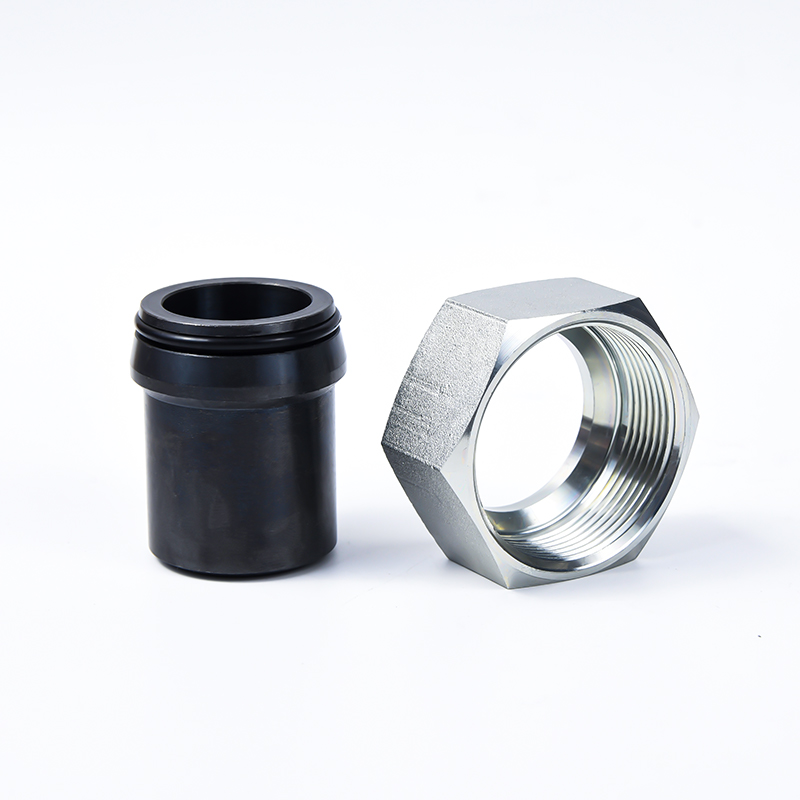

2WC 2WD SKA pipe weld fittings, 24° cone with O-ring seal, according to international standards: DIN2353/ISO8434, welded to steel pipe (EN10305), available in standard pipe diameters 24° cone light connection (DIN2353)06L-42L, 24° cone heavy connection (DIN2353)06S-38S, pressure up to 420 bar/6000 PSI.
+86-0574-62687101 / +86 13362460879 Contact Us
  • 2WC 2WD SKA Din bite type tube fittings
  • 2WC 2WD SKA Din bite type tube fittings
  • 2WC 2WD SKA Din bite type tube fittings
  • Description
  • Inquiry
  • PART NO. THREAD TUBE SlzE DIMENSIONS MPa
    F D1xt L D0 D2 S2
    2WC-6x1.5 M12x1.5 6x1.5 30 2.5 6 14 25 L
    2WC-8x2.0 M14x1.5 8x2.0 30 4 8 17
    2WC-10x2.0 M16x1.5 10x2.0 31 6 10 19
    2WC-12x2.0 M18x1.5 12x2.0 31 7.5 12 22
    2WC-15x2.0 M22x1.5 15x2.0 35 10 15 27
    2WC-18x2.0 M26x1.5 18x2.0 35 13 18 32
    2WC-22x2.0 M30x2 22x2.0 35 17 22 36 16L
    2WC-28x2.5 M36x2 28x2.5 41 23 28 41
    2WC-35x3.0 M45x2 35x3.0 48 29 35 50
    2WC-42x3.0 M52x2 42x3.0 50.5 36 42 60
    2WD-6x1.5 M14x1.5 6x1.5 28.5 2.5 6 17 63S
    2WD-8x2.0 M16x1.5 8x2.0 29 4 8 19
    2WD-10x1.0 M18x1.5 10x1.0 32 6.5 10 22
    2WD-10x1.5 M18x1.5 10x1.5 32 6.5 10 22
    2WD-10x2.0 M18x1.5 10x2.0 32 6 10 22
    2WD-12x1.5 M20x1.5 12x1.5 32.5 8 12 27
    2WD-12x2.0 M20x1.5 12x2.0 32.5 8 12 27
    2WD-12x2.5 M20x1.5 12x2.5 32.5 7 12 27
    2WD-16x1.5 M24x1.5 16x1.5 39 13 16 30 40 S
    2WD-16x2.0 M24x1.5 16x2.0 39 12 16 30
    2WD-16×2.5 M24x1.5 16x2.5 39 11 16 30
    2WD-16x3.0 M24x1.5 16x3.0 39 10 16 30
    2WD-20x2.0 M30x2 20x2.0 43 15 20 36
    2WD-20x2.5 M30x2 20x2.5 43 15 20 36
    2WD-20x3.0 M30x2 20x3.0 43 14 2o 36
    2WD-20x4.0 M30x2 20x4.0 43 12 20 36
    2WD-25x2.5 M36x2 25x2.5 50 20 25 46
    2WD-25x3.0 M36x2 25x3.0 50 19 25 46
    2WD-25x4.0 M36x2 25x4.0 50 17 25 46
    2WD-25x5.0 M36x2 25x5.0 50 15 25 46
    2WD-30x3.0 M42x2 30x3.0 52 24 30 50 25S
    2WD-30x4.0 M42x2 30x4.0 52 22 30 50
    2WD-30x5.0 M42x2 30x5.0 52 20 30 50
    2WD-30x6.0 M42x2 30x6.0 52 18 30 50
    2WD-38x4.0 M52x2 38x4.0 56.5 30 38 60
    2WD-38x5.0 M52x2 38x5.0 56.5 28 38 60
    2WD-38x6.0 M52x2 38x6.0 56.5 26 38 60
    2WD-38x7.0 M52x2 38x7.0 56.5 24 38 60

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 2WC 2WD SKA Din bite type tube fittings suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 2WC 2WD SKA Din bite type tube fittings in bulk.
