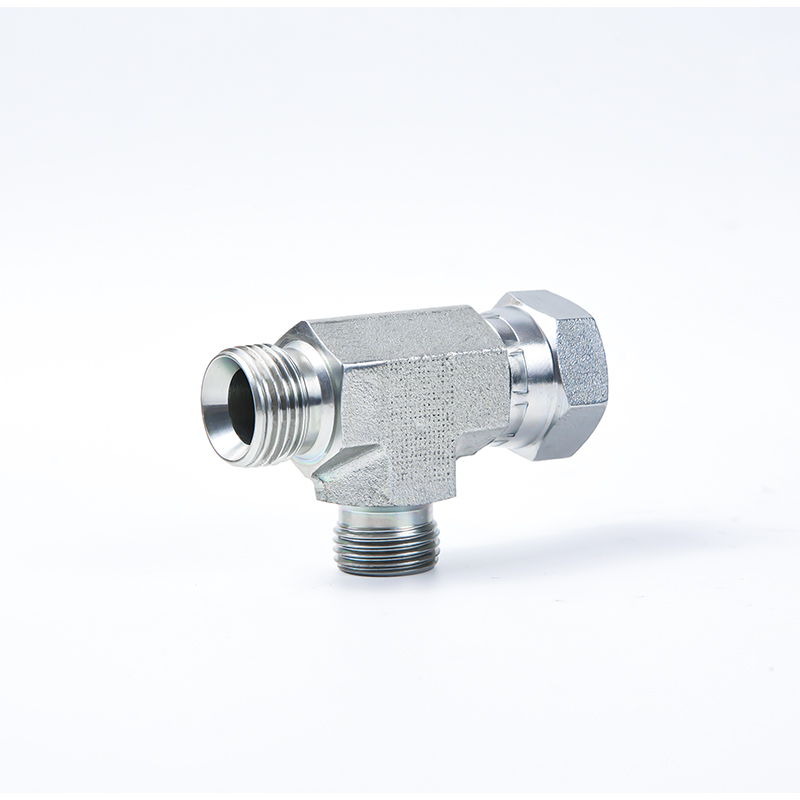

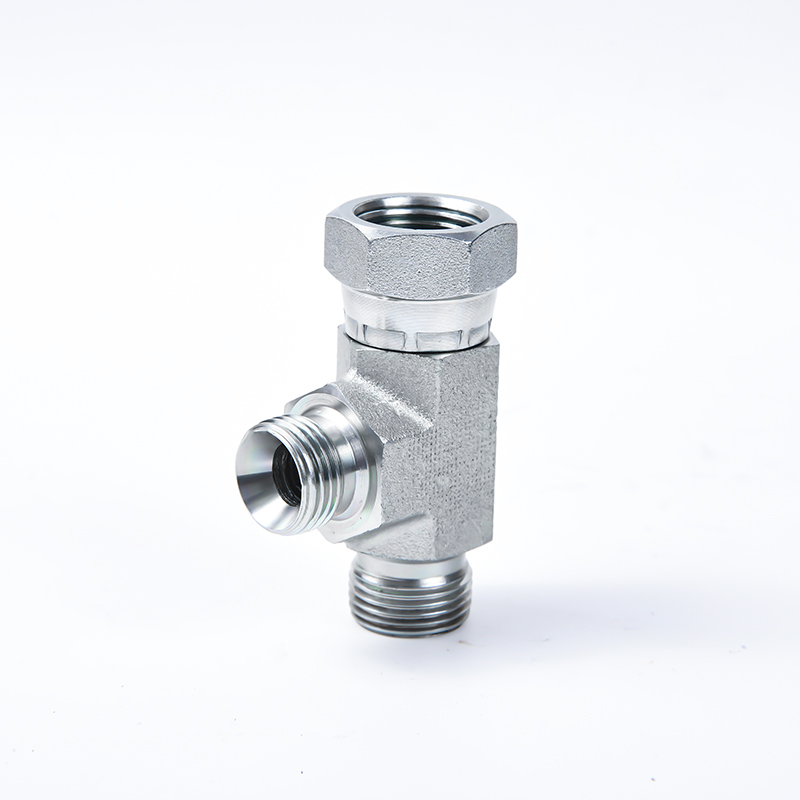

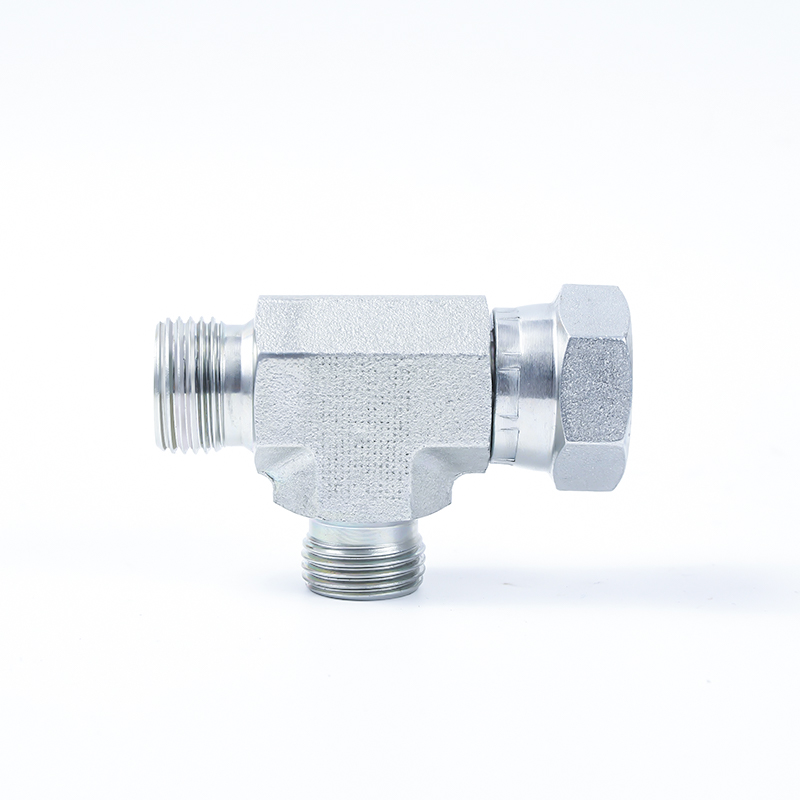

CB Bsp male 60° seat / bsp female 60° cone run tee

CB Bsp male 60° seat / bsp female 60° cone run tee

CB Inch thread tee movable nut coupling, 60° cone seal on both ends with imperial BSPP male female thread and 60° cone seal on one end with imperial movable female BSPP thread, in accordance with international standards: ISO 7-1, BS 5200, ISO 8434-6, pressure range up to 420bar/6000PSI.
+86-0574-62687101 / +86 13362460879 Contact Us
  • CB Bsp male 60° seat / bsp female 60° cone run tee
  • CB Bsp male 60° seat / bsp female 60° cone run tee
  • CB Bsp male 60° seat / bsp female 60° cone run tee
  • CB Bsp male 60° seat / bsp female 60° cone run tee
  • Description
  • Inquiry
  • PART NO. THREAD DIMENSIONS
    E F G A B c S1 S2
    CB-02Z G1/8"X28 G1/8"X28 G1/8"X28 19.8 19.8 5.5 11 14
    CB-04Z G1/4"X19 G1/4"X19 G1/4"X19 25 25 5.5 14 19
    CB-06Z G3/8"X19 G3/8"X19 G3/8"X19 27.5 27.5 6.3 16 22
    CB-08Z G1/2"X14 1/2"X14 G1/2"X14 34.5 34.5 7.5 22 27
    CB-10Z G5/8"X14 G5/8"X14 G5/8"X14 35 35 9.5 22 30
    CB-12Z G3/4"X14 G3/4"X14 G3/4"X14 40 40 10.9 27 32
    CB-16Z G1"X11 G1"X11 G1"X11 46 46 11.7 33 41
    CB-20Z G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 50.5 50.5 10.1 41 50
    CB-24Z G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 57.5 57.5 12.5 48 55
    CB-32Z G2"X11 G2"X11 G2"X11 72.5 72.5 16.1 63 70

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known CB Bsp male 60° seat / bsp female 60° cone run tee suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale CB Bsp male 60° seat / bsp female 60° cone run tee in bulk.
