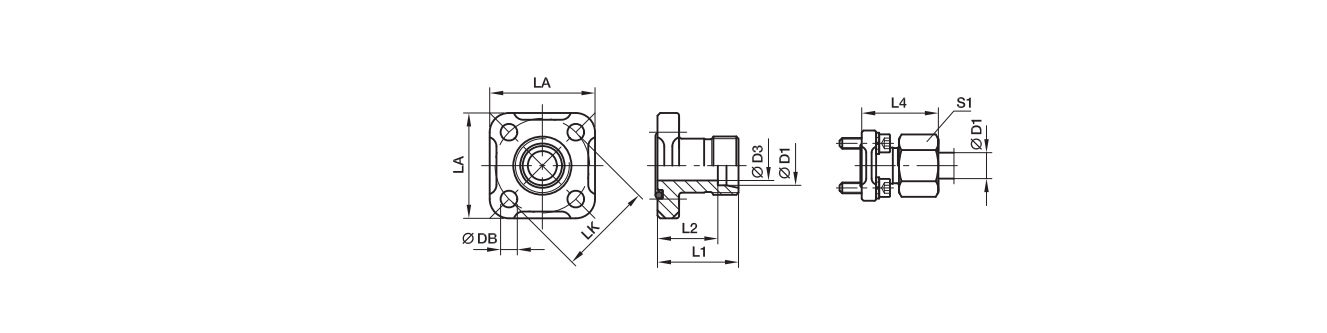

LK |
D1 |
D3 |
L1 |
L2 |
L4 |
LA |
S1 |
DB |
Bolt |
O-ring |
Weight |
Order number* |
Working pressure (bar) CF |
|
35 35 35 35 40 |
10L 12L 15L 16S 15L |
8 10 12 12 12 |
30 30 30 30 35 |
23.0 23.0 23.0 21.5 28.0 |
39.0 39.0 38.0 39.5 43.0 |
39 39 39 39 42 |
19 22 27 30 27 |
6.4 6.4 6.4 6.4 6.4 |
M6x22 M6x22 M6x22 M6x22 M6x22 |
20x2.5 20x2.5 20x2.5 20x2.5 26x2.5 |
0.15 0.16 0.19 0.21 0.17 |
BFG10L/LK35 BFG12L/LK35 BFG15L/LK35 BFG16S/LK35 BFG15L/LK40 |
315 315 250 315 100 |
|
40 40 40 55 |
18L 22L 28L 20S |
15 19 24 16 |
35 35 35 50 |
27.5 27.5 27.5 39.5 |
44.0 44.5 44.5 61.0 |
42 42 42 57 |
32 36 41 36 |
6.4 6.4 6.4 8.4 |
M6x22 M6x22 M6x22 M8x25 |
26x2.5 26x2.5 26x2.5 32x2.5 |
0.22 0.24 0.28 0.35 |
BFG18L/LK40 BFG22L/LK40 BFG28L/LK40 BFG20S/LK55 |
100 100 100 250 |
