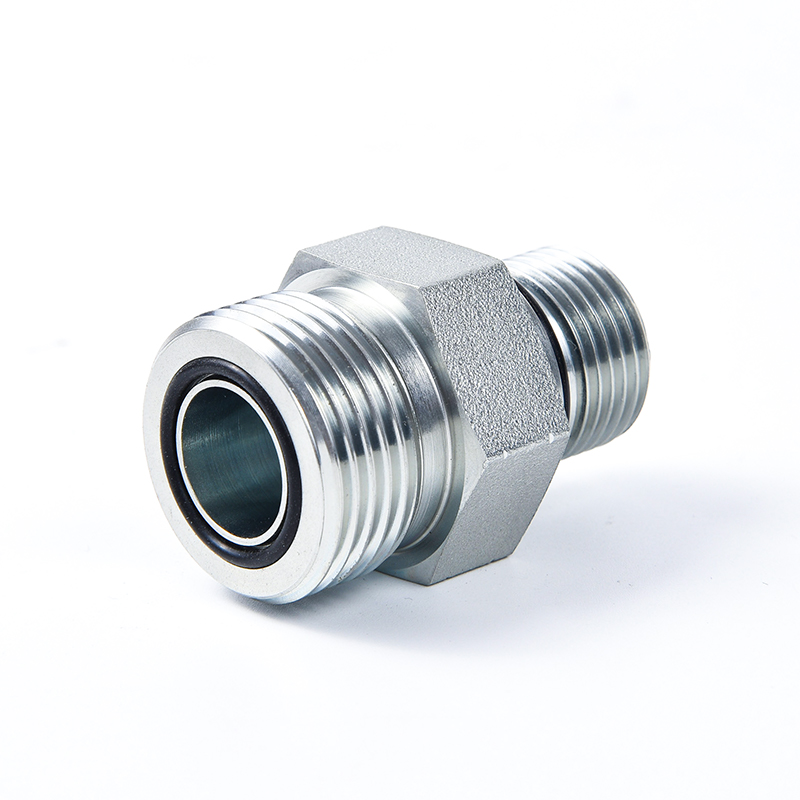

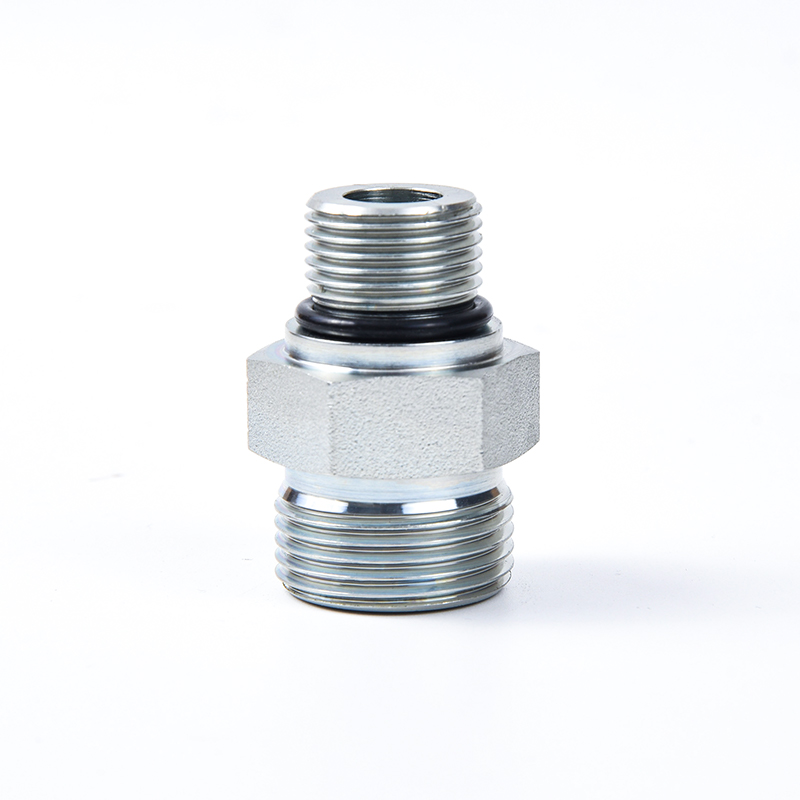

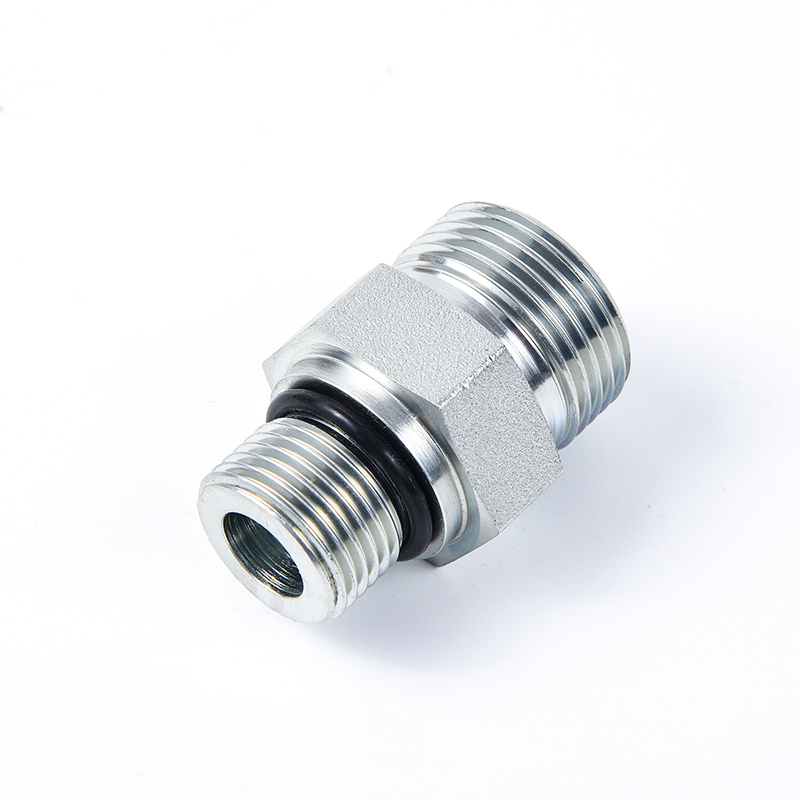

1FG American ORFS thread straight through

PART NO.

THREAD

ORING

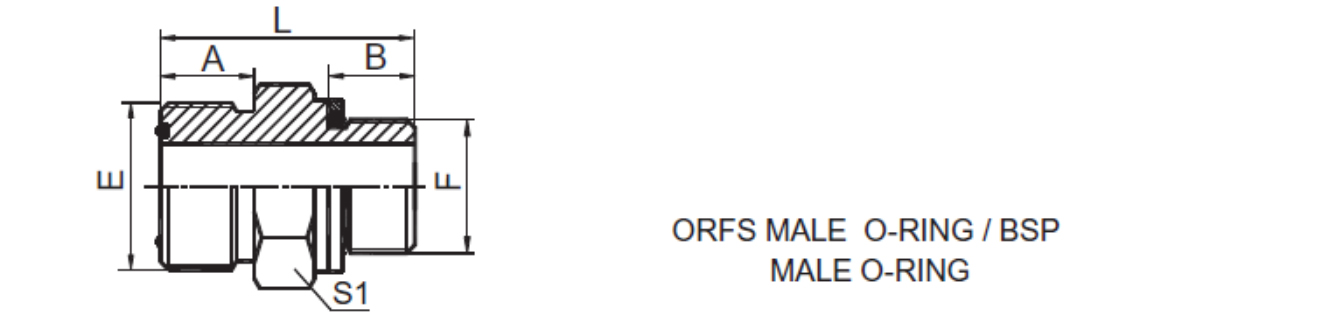

DIMENSIONS

E

F

E terminal

F terminal

A

B

L

S1

1FG-04-02

9/16"X18

G1/8"X28

O011

O011

10

9.5

27.5

17

1FG-04

9/16"X18

G1/4"X19

O011

O111

10

10

29

19

1FG-04-06

9/16"X18

G3/8"X19

O011

O113

10

11.5

31

22

1FG-06

11/16"X16

G3/8"X19

O012

O113

11.2

11.5

32.5

22

1FG-06-04

11/16'X16

G1/4"X19

O012

O111

11.2

10

31

19

1FG-06-08

11/16"X16

G1/2"X14

O012

O115

11.2

14

36.5

27

1FG-08

13/16"X16

G1/2"X14

O014

O115

13

14

38.5

27

1FG-08-06

13/16"X16

G3/8"X19

O014

O113

13

11.5

34.3

22

1FG-08-12

13/16"X16

G3/4"X14

O014

O119

13

15.5

42

32

1FG-10-08

1"X14

G1/2"X14

O016

O115

15.5

14

41

27

1FG-10-12

1"X14

G3/4"X14

O016

O119

15.5

15.5

44

32

1FG-12-08

1.3/16"X12

G1/2"X14

O018

O115

17

14

44

32

1FG-12

1.3/16"X12

G3/4"X14

O018

O119

17

15.5

45.6

32

1FG-12-16

1.3/16"X12

G1"X11

O018

O217

17

18

48

41

1FG-16-12

1.7/16"X12

G3/4"X14

O021

O119

17.5

15.5

48

38

1FG-16

1.7/16"X12

G1"X11

O021

O217

17.5

18

49.5

41

1FG-20

1.11/16"X12

G1.1/4"X11

O025

O222

17.5

20

55.5

50

1FG-20-16

1.11/16"X12

G1"X11

O025

O217

17.5

18

51.5

46

1FG-24

2"X12

G1.1/2"X11

O029

O224

17.5

21.5

57

55
