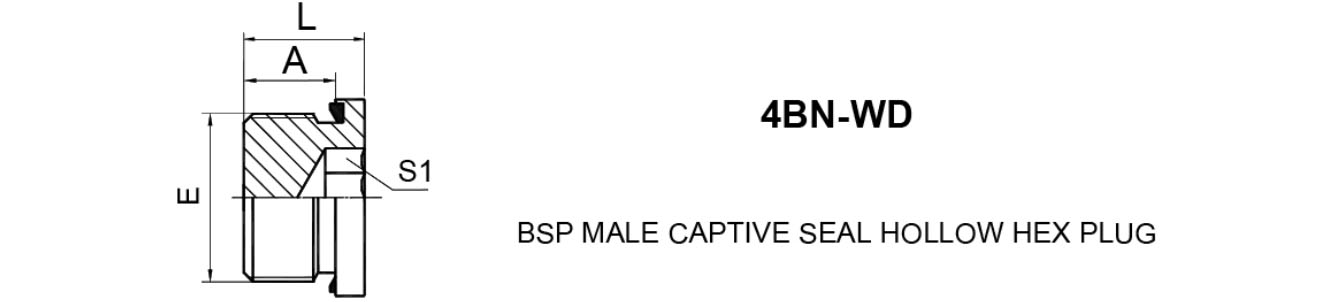

PART NO. | THREAD | CAPTIVE | DIMENSIONS | ||
E | E end | A | L | S1 | |
4BN-02WD | G1/8"x28 | WD-B02 | 8 | 12.2 | 5 |
4BN-04WD | G1/4"x19 | WD-B04 | 12 | 17.2 | 6 |
4BN-06WD | G3/8"x19 | WD-B06 | 12 | 17.2 | 8 |
4BN-08WD | G1/2"x14 | WD-B08 | 14 | 19.2 | 10 |
4BN-12WD | G3/4"x14 | WD-B12 | 16 | 21.2 | 12 |
4BN-16WD | G1"x11 | WD-B16 | 16 | 22.8 | 17 |
4BN-20WD | G1.1/4"x11 | WD-B20 | 20 | 26.8 | 22 |
4BN-24WD | G1.1/2"x11 | D-B24 | 22 | 28.8 | 24 |
