16711 Jic male 74° CONE Iso 8434-2--SAE J514

16711 Jic male 74° CONE Iso 8434-2--SAE J514

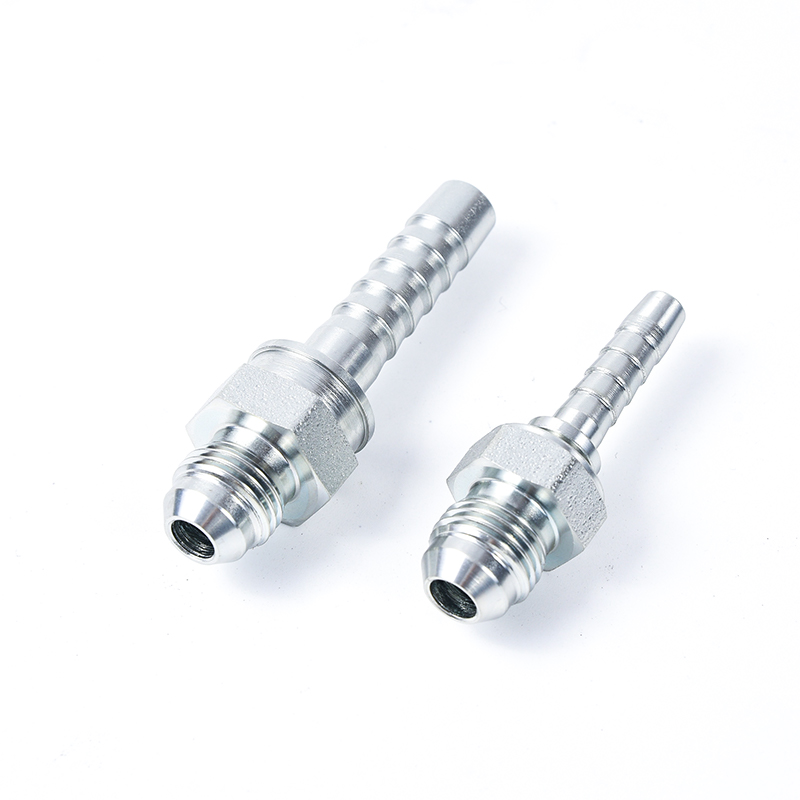

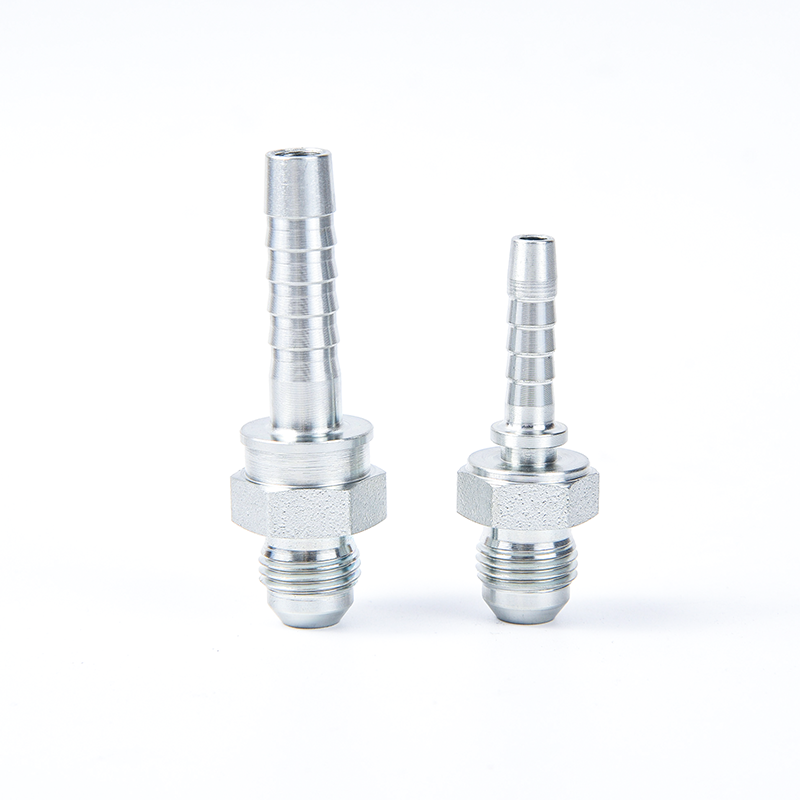

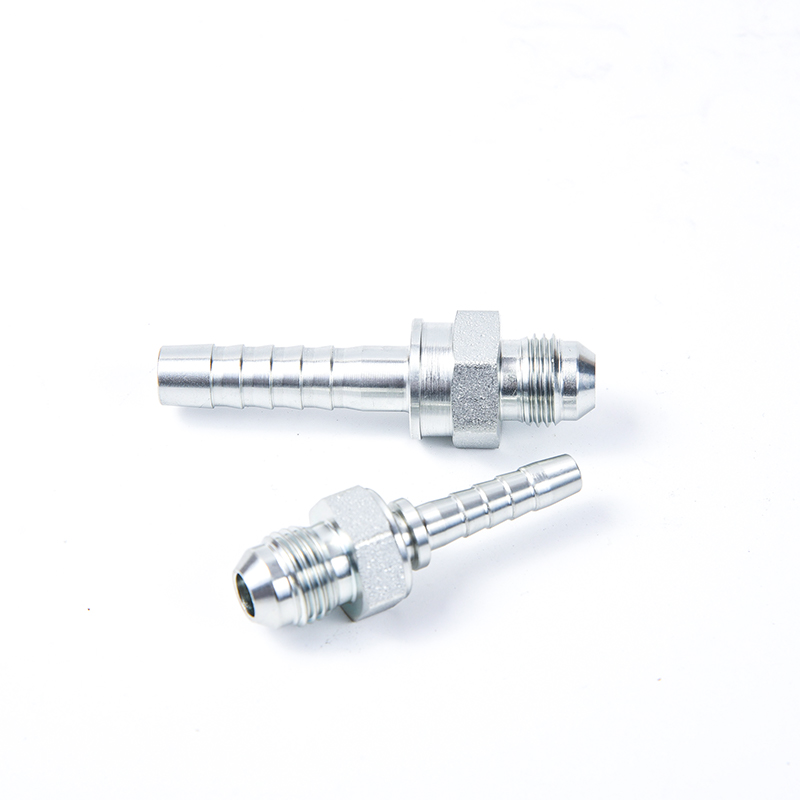

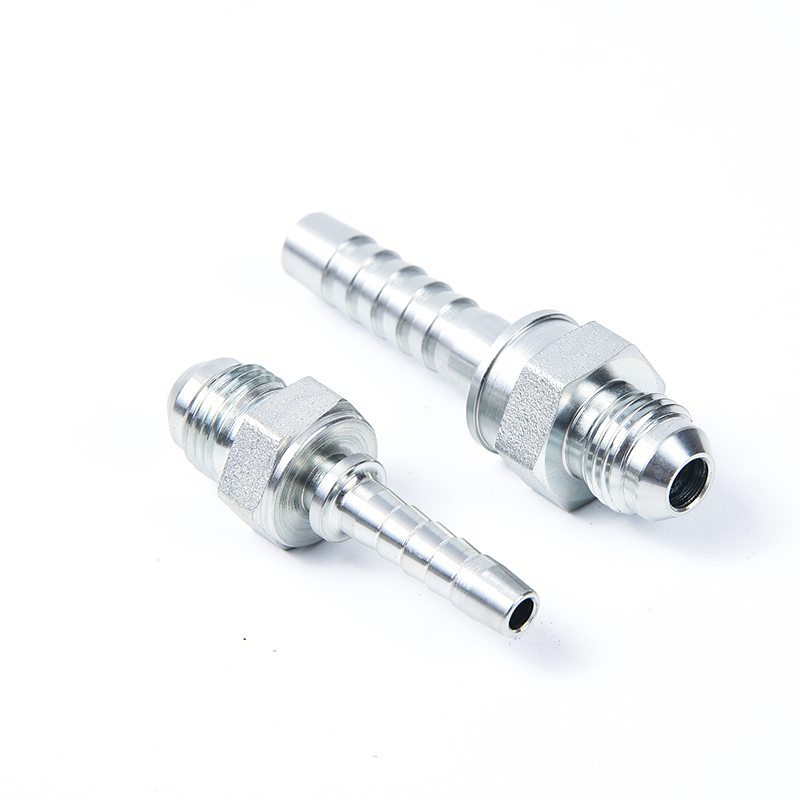

16711 74° hose coupling with 74° tapered seal on one end with external male thread and one end for connection to standard hoses such as SAE 100 EN853. One-piece sleeve enhances the reliability of the connection up to one million pulse tests, matched six-ply hose up to 420 bar/6000 PSI. products comply with international standards: ISO 8434-2, ISO 11926, SAE J514, etc. up to 420 bar/6000 PSI. available with SAE 1/4"-2" thread standard Connections.
+86-0574-62687101 / +86 13362460879 Contact Us
  • 16711 Jic male 74° CONE Iso 8434-2--SAE J514
  • 16711 Jic male 74° CONE Iso 8434-2--SAE J514
  • 16711 Jic male 74° CONE Iso 8434-2--SAE J514
  • 16711 Jic male 74° CONE Iso 8434-2--SAE J514
  • Description
  • Inquiry
  • PART NO
    THREADE
    HOSE BORE
    DIMENSIONS
    DN
    DASH
    A
    C
    S1
    16711-04-03
    7/16"X20
    5
    03
    26
    14
    12
    16711-04-04
    7/16"X20
    6
    04
    26.5
    14
    12
    16711-05-04
    1/2"X20
    6
    04
    26.5
    14
    14
    16711-05-05
    1/2"X20
    8
    05
    26.5
    14
    14
    16711-05-06
    1/2"X20
    10
    06
    26.5
    14
    17
    16711-06-04
    9/16"X18
    6
    04
    26.5
    14.1
    17
    16711-06-05
    9/16"X18
    8
    05
    26.5
    14.1
    17
    16711-06-06
    9/16"X18
    10
    06
    26.5
    14.1
    17
    16711-08-06
    3/4"X16
    10
    06
    31.5
    16.7
    22
    16711-08-08
    3/4"X16
    12
    08
    32
    16.7
    22
    16711-10-06
    7/8"X14
    10
    06
    33.5
    19.3
    24
    16711-10-08
    7/8"X14
    12
    08
    34
    19.3
    24
    16711-10-10
    7/8"X14
    16
    10
    35
    19.3
    24
    16711-12-08
    1.1/16"X12
    12
    08
    38.5
    21.9
    30
    16711-12-10
    1.1/16"X12
    16
    10
    39.5
    21.9
    30
    16711-12-12
    1.1/16"X12
    20
    12
    40
    21.9
    30
    16711-12-16
    1.1/16"X12
    25
    16
    42
    21.9
    30
    16711-14-10
    1.3/16"X12
    16
    10
    41.5
    22.6
    32
    16711-14-12
    1.3/16"X12
    20
    12
    40.5
    22.6
    32
    16711-16-12
    1.5/16"X12
    20
    12
    43
    23.1
    36
    16711-16-16
    1.5/16"X12
    25
    16
    43.5
    23.1
    36
    16711-20-16
    1.5/8"X12
    25
    16
    47
    24.3
    46
    16711-20-20
    1.5/8"X12
    32
    20
    47.5
    24.3
    46

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 16711 Jic male 74° CONE Iso 8434-2--SAE J514 suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 16711 Jic male 74° CONE Iso 8434-2--SAE J514 in bulk.
