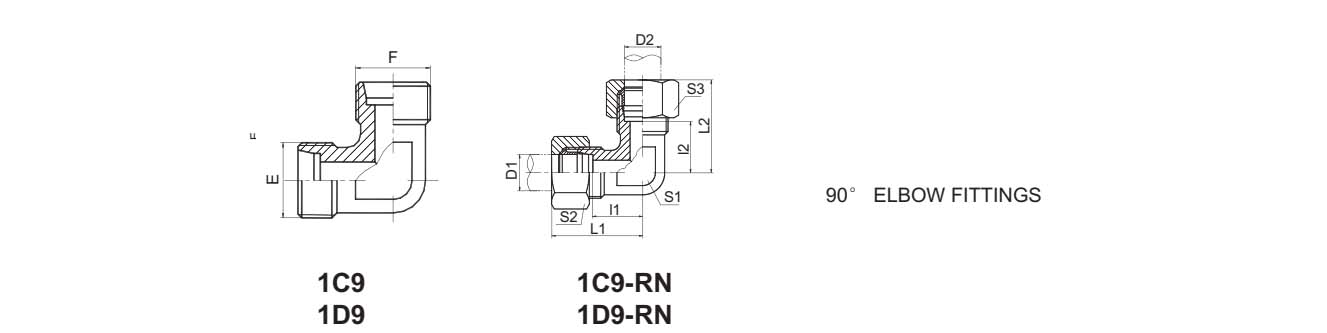

PART NO.
|
THREAD
|
TUBE O.D.
|
DIMENSIONS
|
MPa
|
|||||
|
E
|
F
|
D1
|
D2
|
l1,2
|
L1,L2
|
S1
|
s2,s3
|
||
|
1C9-12
|
M12X1.5
|
M12X1.5
|
6
|
6
|
12
|
27
|
12
|
14
|
31.5L
|
|
1C9-14
|
M14X1.5
|
M14X1.5
|
8
|
8
|
14
|
29
|
12
|
17
|
|
|
1C9-16
|
M16X1.5
|
M16X1.5
|
10
|
10
|
15
|
30
|
14
|
19
|
|
|
1C9-18
|
M18X1.5
|
M18X1.5
|
12
|
12
|
17
|
32
|
17
|
22
|
|
|
1C9-22
|
M22X1.5
|
M22X1.5
|
15
|
15
|
21
|
36
|
19
|
27
|
|
|
1C9-26
|
M26X1.5
|
M26X1.5
|
18
|
18
|
23.5
|
40
|
24
|
32
|
|
|
1C9-30
|
M30X2
|
M30X2
|
22
|
22
|
27.5
|
44
|
27
|
36
|
16L
|
|
1C9-36
|
M36X2
|
M36X2
|
28
|
28
|
30.5
|
47
|
36
|
41
|
|
|
1C9-45
|
M45X2
|
M45X2
|
35
|
35
|
34.5
|
56
|
41
|
50
|
|
|
1C9-52
|
M52X2
|
M52X2
|
42
|
42
|
40
|
63
|
50
|
60
|
|
|
1D9-14
|
M14X1.5
|
M14X1.5
|
6
|
6
|
16
|
31
|
12
|
17
|
63S
|
|
1D9-16
|
M16X1.5
|
M16X1.5
|
8
|
8
|
17
|
32
|
14
|
19
|
|
|
1D9-18
|
M18X1.5
|
M18X1.5
|
10
|
10
|
17.5
|
34
|
17
|
22
|
|
|
1D9-20
|
M20X1.5
|
M20X1.5
|
12
|
12
|
21.5
|
38
|
17
|
24
|
|
|
1D9-22
|
M22X1.5
|
M22X1.5
|
14
|
14
|
22
|
40
|
19
|
27
|
|
|
1D9-24
|
M24X1.5
|
M24X1.5
|
16
|
16
|
24.5
|
43
|
24
|
30
|
40S
|
|
1D9-30
|
M30X2
|
M30X2
|
20
|
20
|
26.5
|
48
|
27
|
36
|
|
|
1D9-36
|
M36X2
|
M36X2
|
25
|
25
|
30
|
54
|
36
|
46
|
|
|
1D9-42
|
M42X2
|
M42X2
|
30
|
30
|
35.5
|
62
|
41
|
50
|
31.5S
|
|
1D9-52
|
M52X2
|
M52X2
|
38
|
38
|
41
|
72
|
50
|
60
|
|
|
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1C9-30RN.
|
|||||||||
