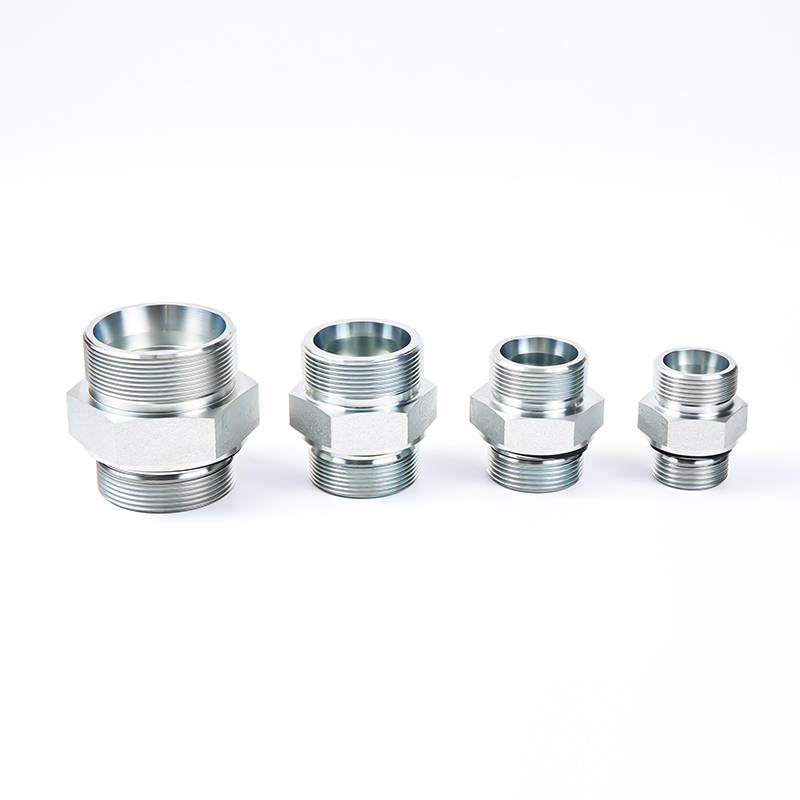

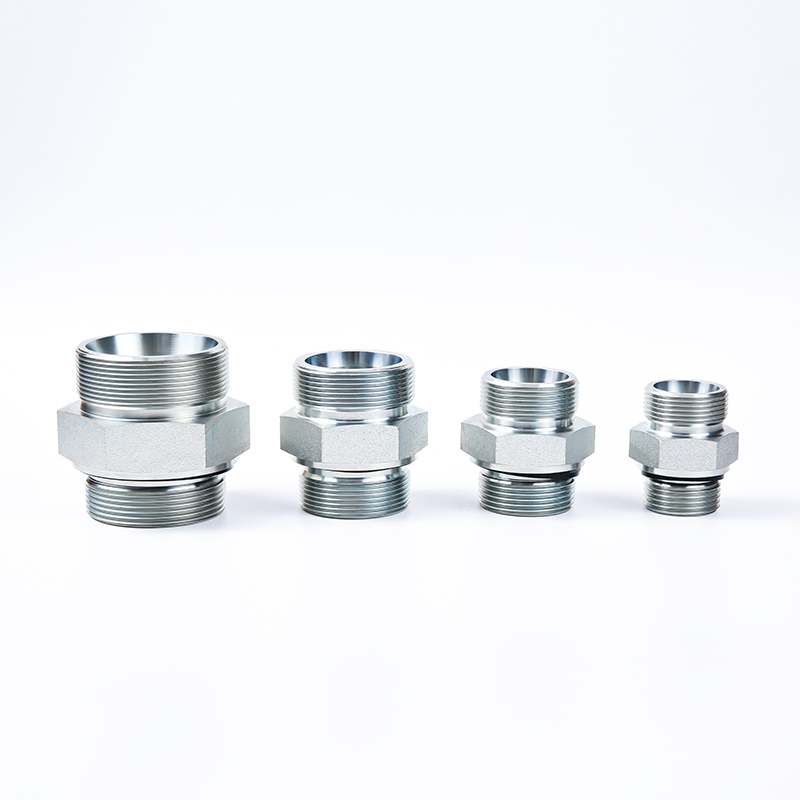

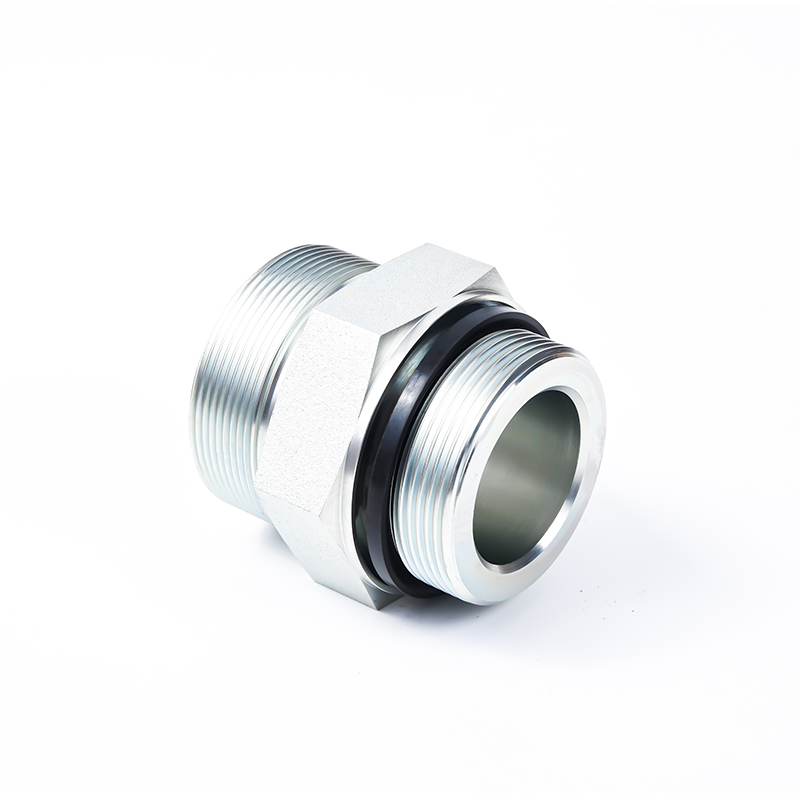

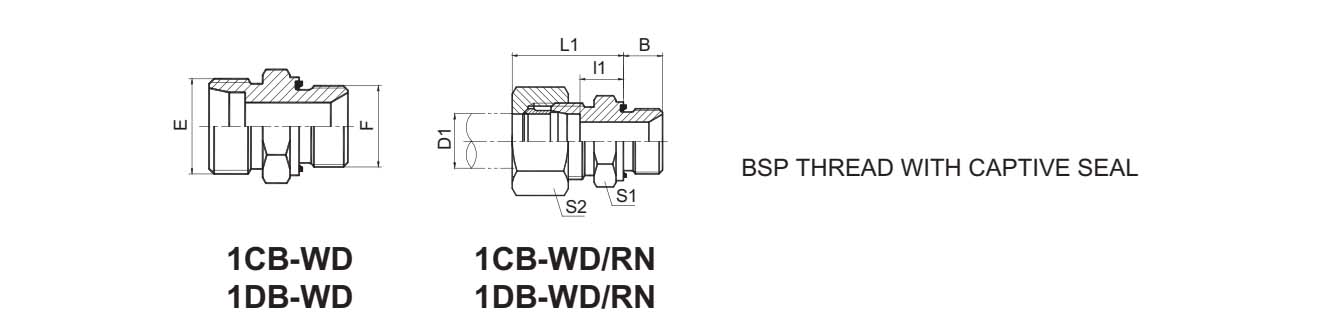

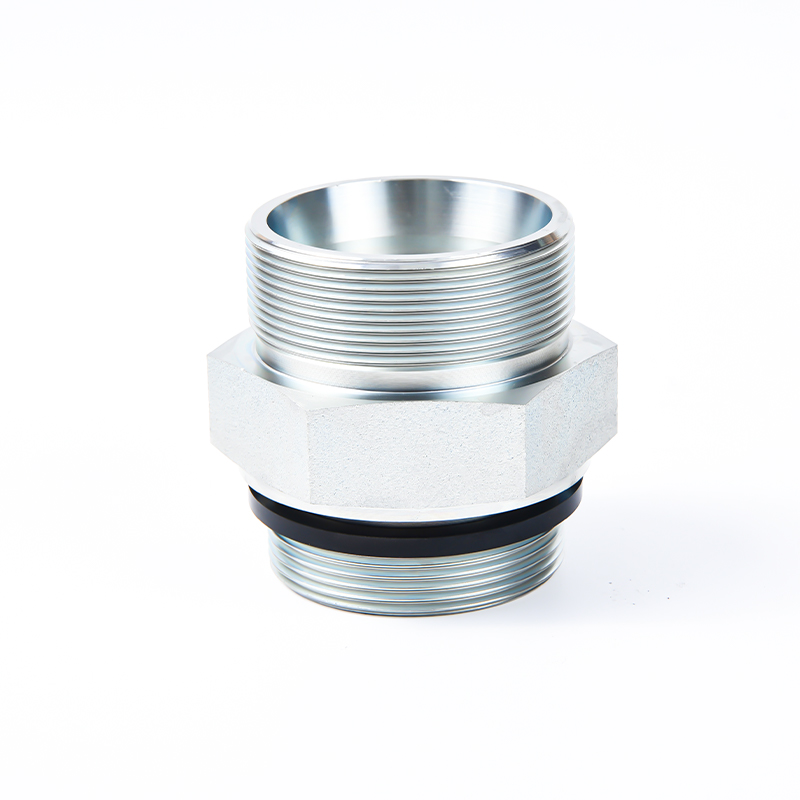

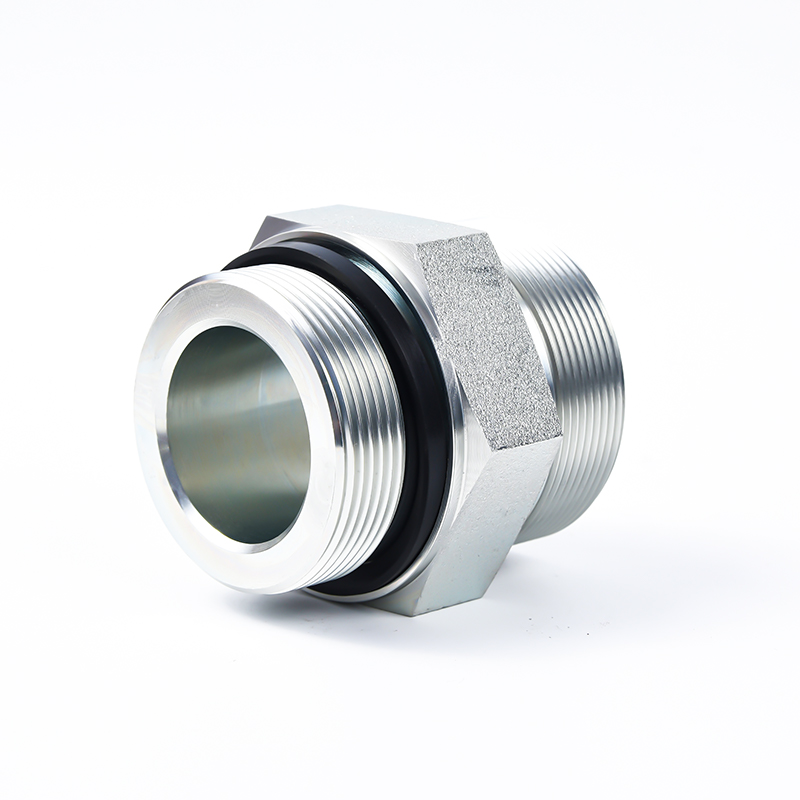

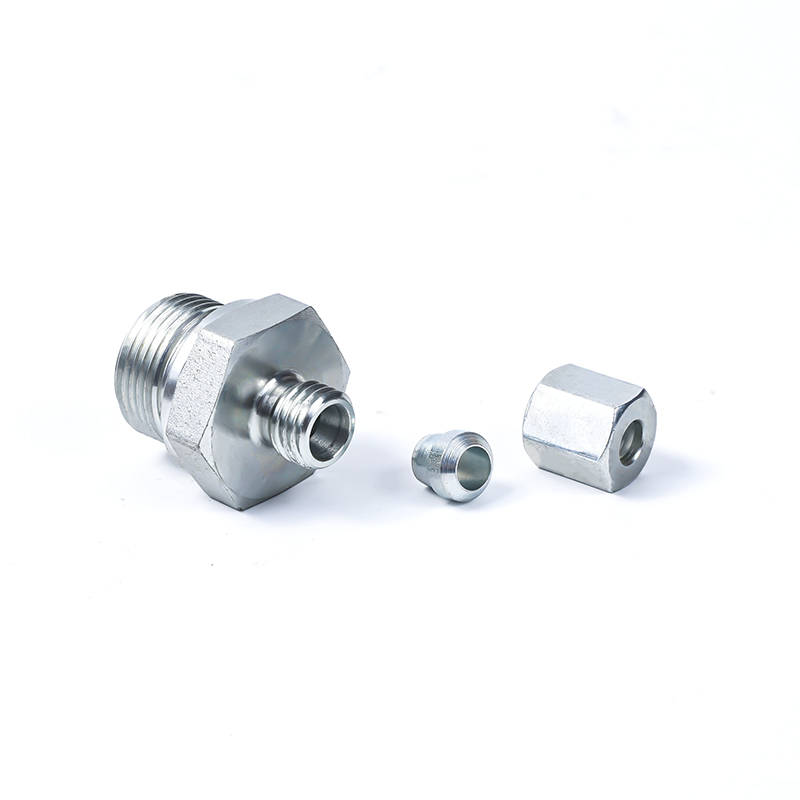

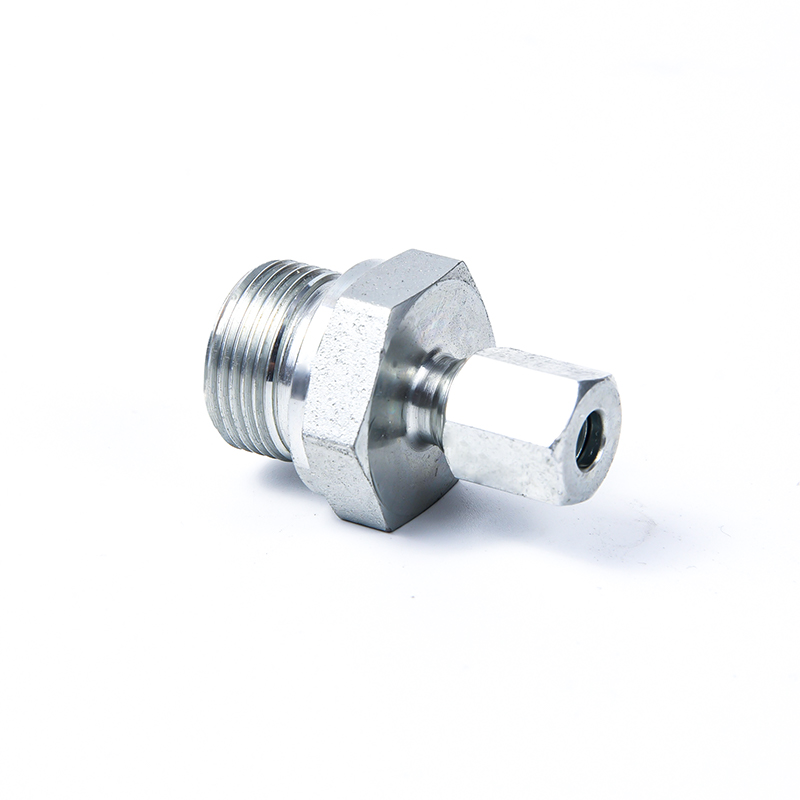

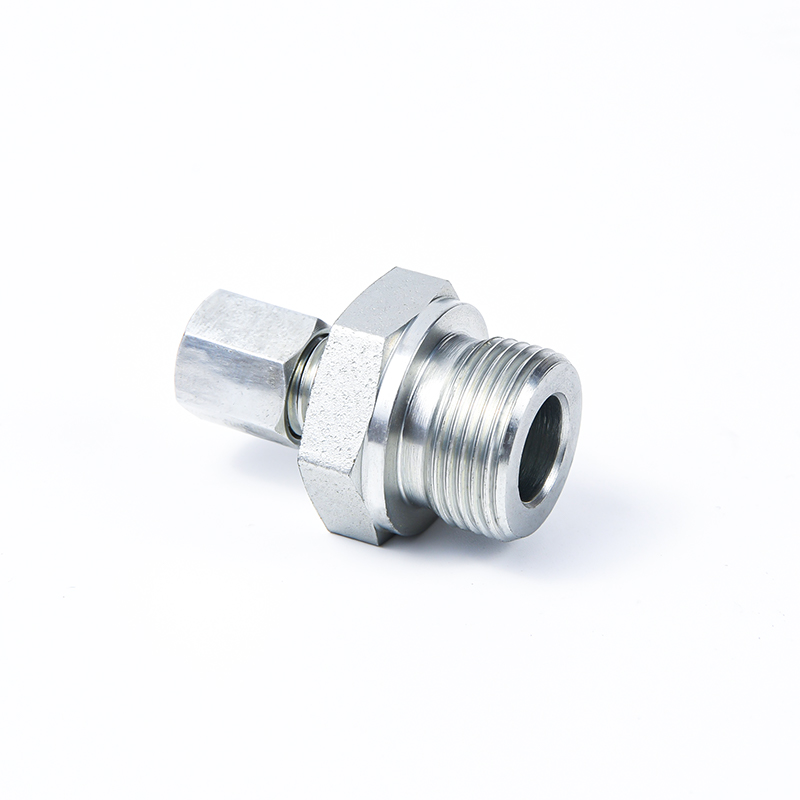

1CB-WD 1DB-WD GE -WD Bsp thread with captive seal

PART NO.

THREAD

TUBE O.D.

DIMENSIONS

MPa

E

F

D1

B

I1

L1

S1

S2

1CB-12-02WD

M12X1.5

G1/8"X28

6

8

8.5

23.5

14

14

31.5L

1CB-12-04WD

M12X1.5

G1/4"X19

6

12

10

25

19

14

1CB-12-06WD

M12X1.5

G3/8"X19

6

12

11.5

26.5

22

14

1CB-14-02WD

M14X1.5

G1/8"X28

8

8

9

24

14

17

1CB-14-04WD

M14X1.5

G1/4"X19

8

12

10

24

19

17

1CB-14-06WD

M14X1.5

G3/8"X19

8

12

11

26

22

17

1CB-16-04WD

M16X1.5

G1/4"X19

10

12

11

24.5

19

19

1CB-16-06WD

M16X1.5

G3/8"X19

10

12

12.5

26

22

19

1CB-16-08WD

M16X1.5

G1/2X14

10

14

13

28

27

19

1CB-18-04WD

M18X1.5

G1/4"X19

12

12

12

27

19

22

1CB-18-06WD

M18X1.5

G3/8"X19

12

12

12.5

26

22

22

1CB-18-08WD

M18X1.5

G1/2"X14

12

14

14

28

27

22

1CB-22-04WD

M22X1.5

G1/4"X19

15

12

13

28

24

27

1CB-22-06WD

M22X1.5

G3/8"X19

15

12

13.5

28

24

27

1CB-22-08WD

M22X1.5

G1/2"X14

15

14

14

29

27

27

1CB-22-12WD

M22X1.5

G3/4"X14

15

16

15

29

32

27

1CB-26-08WD

M26X1.5

G1/2"X14

18

14

14.5

31

27

32

1CB-26-12WD

M26X1.5

G3/4"X14

18

16

14.5

31

32

32

1CB-30-12WD

M30X2

G3/4"X14

22

16

16.5

33

32

36

16L

1CB-36-16WD

M36X2

G1"X11

28

18

17.5

34

41

41

1CB-45-20WD

M45X2

G1.1/4"X11

35

20

17.5

39

50

50

1CB-52-24WD

M52X2

G1.1/2"X11

42

22

19

42

55

60

1DB-14-04WD

M14X15

G1/4"X19

6

12

15

 30

19

17

63S

1DB-16-04WD

M16X1.5

G1/4"X19

8

12

15

30

19

19

1DB-16-06WD

M16X1.5

G3/8"X19

8

12

15.5

30

22

19

1DB-18-04WD

M18X1.5

G1/4"X19

10

12

14.5

31

19

22

1DB-1B-06WD

M18X1.5

G3/8"X19

10

12

14.5

31

22

22

1DB-18-08WD

M18X1.5

G1/2"X14

10

14

17.5

34

27

22

1DB-20-04WD

M20X1.5

G1/4"X19

12

12

16.5

33

22

24

1DB-20-06WD

M20X1.5

G3/8"X19

12

12

15

33

22

24

1DB-20-08WD

M20X1.5

G1/2"X14

12

14

17.5

34

27

24

1DB-22-08WD

M22X1.5

G1/2"X14

14

14

19

37

27

27

1DB-24-06WD

M24X1.5

G3/8"X19

16

12

18

36.5

27

30

40 S

1DB-24-08WD

M24X1.5

G1/2"X14

16

14

18.5

37

27

30

1DB-24-12WD

M24X1.5

G3/4"X14

16

16

20.5

39

32

30

1DB-30-12WD

M30X2

G3/4"X14

20

16

20.5

42

32

36

1DB-36-08WD

M36X2

G1/2"X14

25

14

23

47

41

46

1DB-36-12WD

M36X2

G3/4"X14

25

16

23

47

41

46

1DB-36-16WD

M36X2

G1"X11

25

18

23

47

41

46

1DB-42-20WD

M42X2

G1.1/4"X11

30

20

23.5

50

50

50

1DB-52-24WD

M52X2

G1.1/2"X11

38

22

26

57

55

60

31.5S

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN"after our part no.,for example 1DB-20-08WD/RN.
