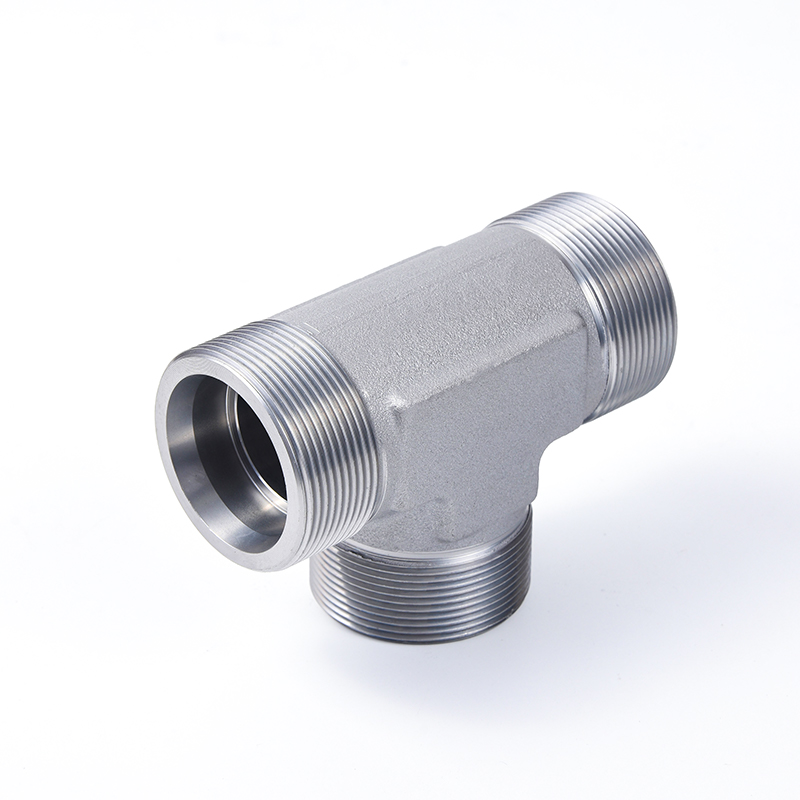

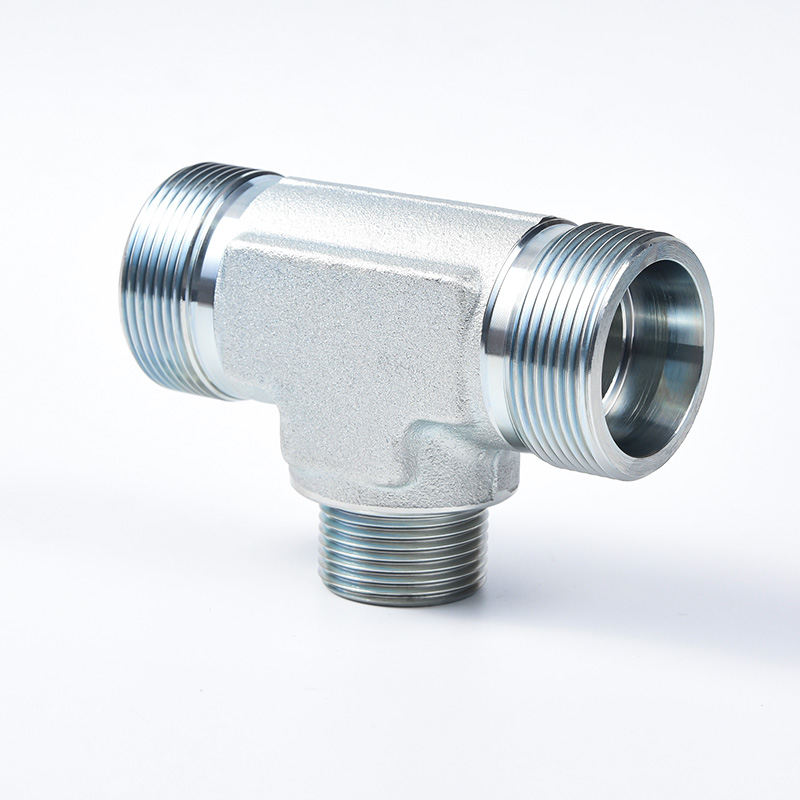

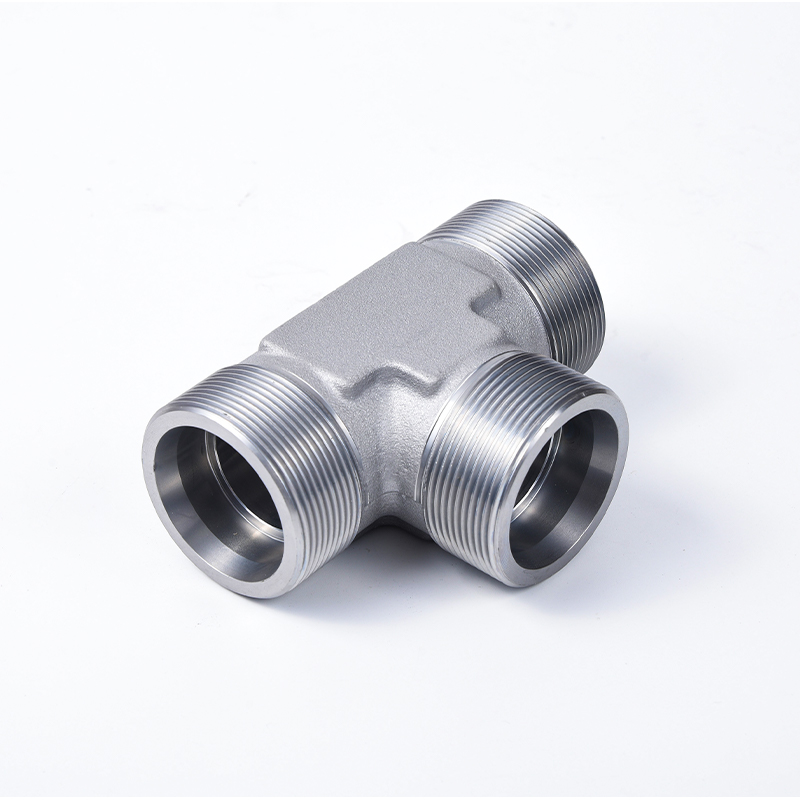

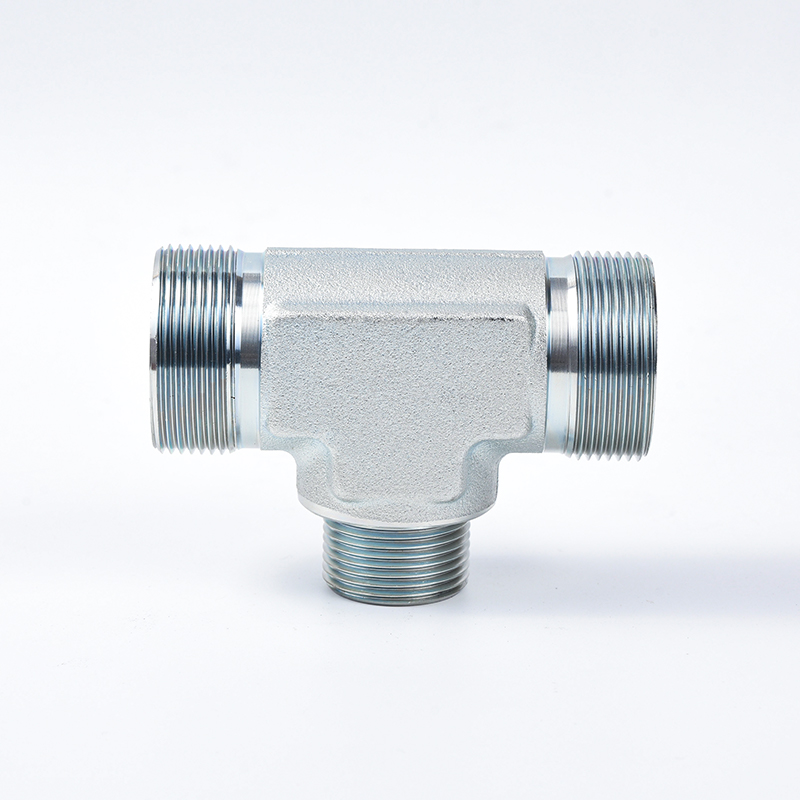

AC AD T tee male coupling with 24° tapered female triple thread for forming to pipe ends, welded pipe, ferrule connections, pressure range up to 630bar/9000PSI, according to international standards: DIN3861/ISO8434, available with standard pipe diameters 24° tapered light (DIN2353) 06L-42L, 24° tapered heavy (DIN2353) 06S-38S, available with tee reducers. ) 06S-38S, available with tee reducers.
|
PART NO
|
THREAD
|
TUBE O.D.
|

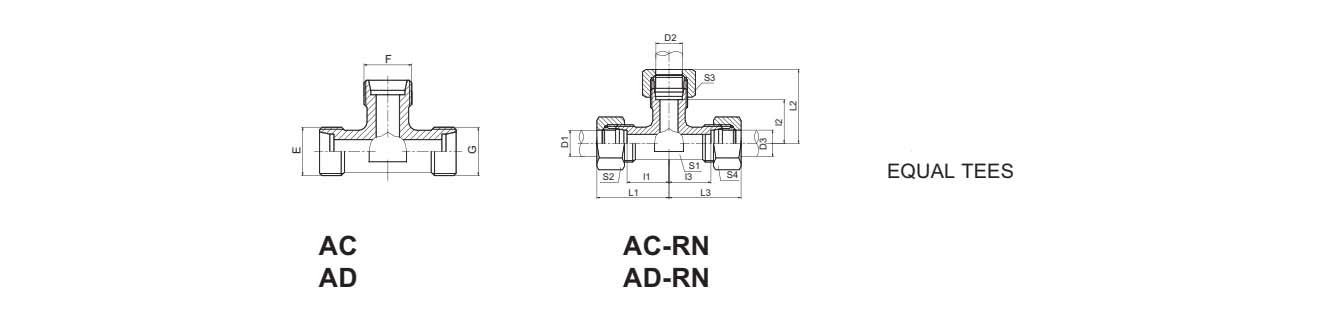

DIMENSIONS
|
MPa
|
|||
|
E,F,G
|
D1，D2,D3
|
I1,l2,I3
|
L1,L2,L3
|
s1
|
s2,s3,s4
|
||
|
AC-08
|
M8X1
|
4
|
11
|
21
|
9
|
10
|
10LL
|
|
AC-10
|
M10X1
|
5
|
9.5
|
21
|
9
|
12
|
|
|
AC-10LL
|
M10X1
|
6
|
9.5
|
21
|
9
|
12
|
|
|
AC-12LL
|
M12X1
|
8
|
11.5
|
23
|
12
|
14
|
|
|
AC-12
|
M12X1.5
|
6
|
12
|
27
|
12
|
14
|
25L
|
|
AC-14
|
M14X1.5
|
8
|
14
|
29
|
12
|
17
|
|
|
AC-16
|
M16x1.5
|
10
|
15
|
30
|
14
|
19
|
|
|
AC-18
|
M18x1.5
|
12
|
17
|
32
|
17
|
22
|
|
|
AC-22
|
M22x1.5
|
15
|
21
|
36
|
19
|
27
|
|
|
AC-26
|
M26X1.5
|
18
|
23.5
|
40
|
24
|
32
|
|
|
AC-30
|
M30×2
|
22
|
27.5
|
44
|
27
|
36
|
16L
|
|
AC-36
|
M36x2
|
28
|
30.5
|
47
|
36
|
41
|
|
|
AC-45
|
M45x2
|
35
|
34.5
|
56
|
41
|
50
|
|
|
AC-52
|
M52X2
|
42
|
40
|
63
|
50
|
60
|
|
|
AD-14
|
M14X1.5
|
6
|
16
|
31
|
12
|
17
|
63S
|
|
AD-16
|
M16X1.5
|
8
|
17
|
32
|
14
|
19
|
|
|
AD-18
|
M18X1.5
|
10
|
17.5
|
34
|
17
|
22
|
|
|
AD-20
|
M20X1.5
|
12
|
21.5
|
38
|
17
|
24
|
|
|
AD-22
|
M22X1.5
|
14
|
22
|
40
|
19
|
27
|
|
|
AD-24
|
M24X1.5
|
16
|
24.5
|
43
|
24
|
30
|
40S
|
|
AD-30
|
M30X2
|
20
|
26.5
|
48
|
27
|
36
|
|
|
AD-36
|
M36X2
|
25
|
30
|
54
|
36
|
46
|
|
|
AD-42
|
M42X2
|
30
|
35.5
|
62
|
41
|
50
|
|
|
AD-52
|
M52X2
|
38
|
41
|
72
|
50
|
60
|
31.5S
|
|

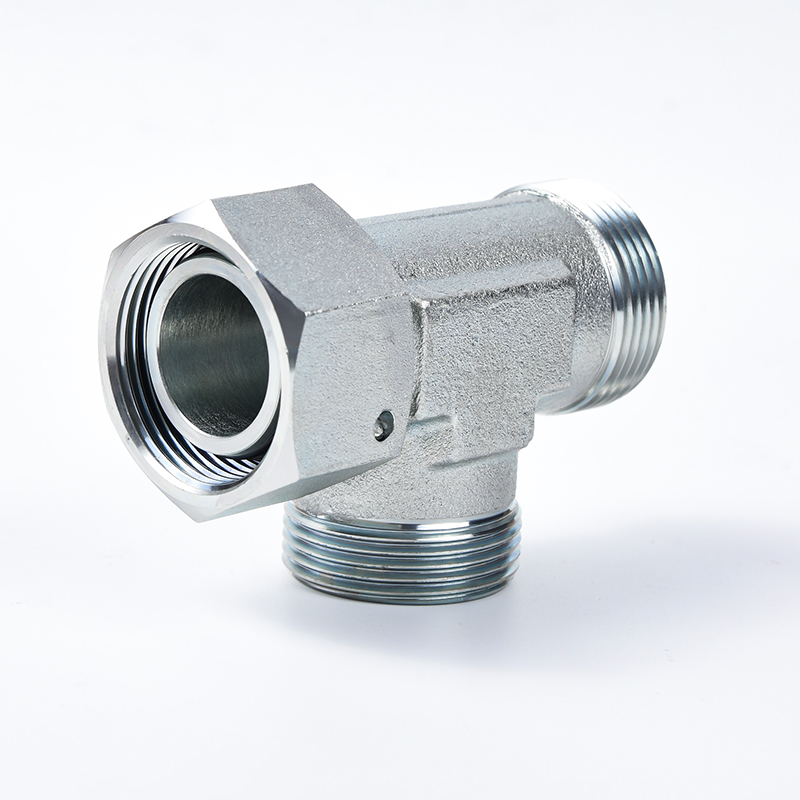

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example AC-22RN.
|
|||||||
