| Product Standards: | ISO 6162 |
| Product Materials: | Carbon steel/stainless steel |
| Surface Finish: | White zinc/zinc-nickel alloy |
| Thread: | SAE flange connection |
| Product Features: | High working pressure, floating ball design ensures leak-free sealing and automatically compensates for seat wear or installation of different centres, hard chrome plated mirror polished ball, greatly reduces friction and seat wear, and a wide range of seat materials are available to suit a variety of special applications. |
Application：
Various hydraulic systems, especially for shipyards and construction machinery
|

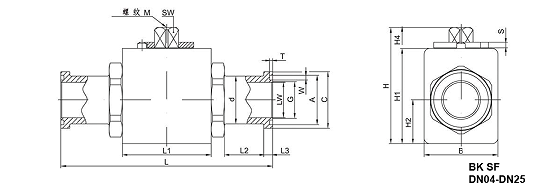

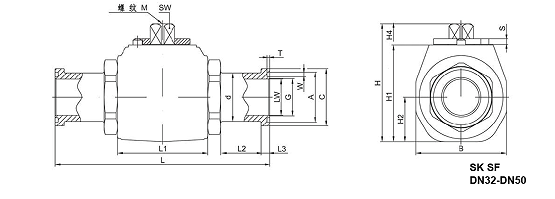

DN
mm
|
LW
mm
|
L1
mm
|
B
mm
|
H
mm
|
H1
mm
|
H2
mm
|
H4
mm
|
SW
mm
|
M
mm
|
S mm |
| 13 | 13 | 47 | 35 | 61.2 | 40 | 17.25 | 10.9 | 9 | M5 | 3 |
| 20 | 20 | 60 | 48 | 73.4 | 57 | 24.5 | 16 | 14 | M6 | 4 |
| 25 | 24 | 65 | 57 | 76.6 | 60 | 26.5 | 16 | 14 | M6 | 4 |
| 32 | 32 | 83.4 | 80 | 104.4 | 85.4 | 39.5 | 18.5 | 17 | M8 | 5 |
| 40 | 38 | 91 | 90 | 111.4 | 92.4 | 42 | 18.5 | 17 | M8 | 5 |
| 50 | 47.5 | 100 | 111 | 129 | 110 | 52 | 18.5 | 17 | M8 | 5 |
