1JO9 ISO 11926-3 American thread right angle adjustable

1JO9 ISO 11926-3 American thread right angle adjustable

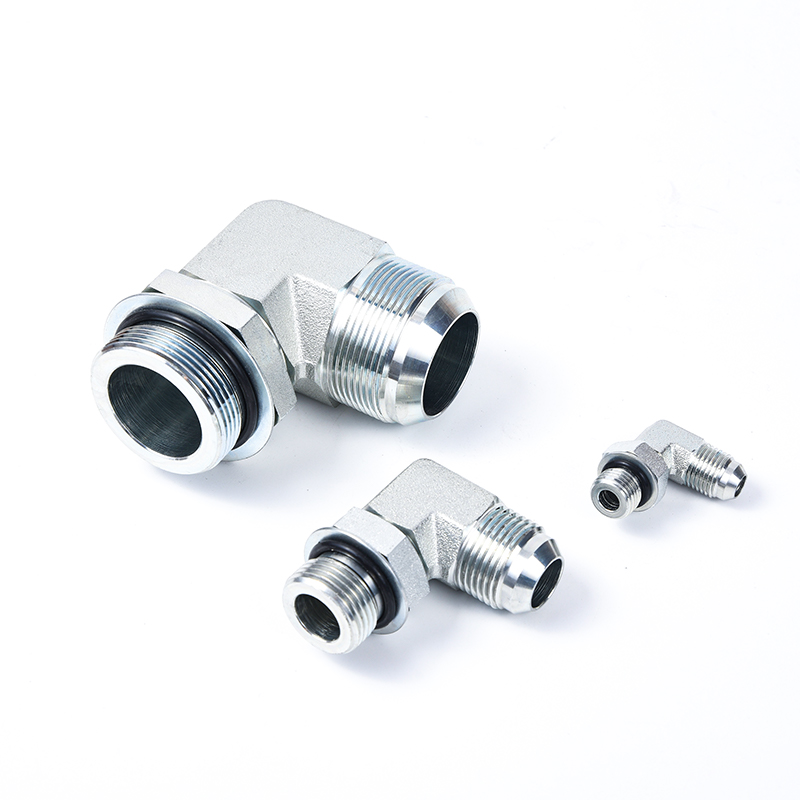

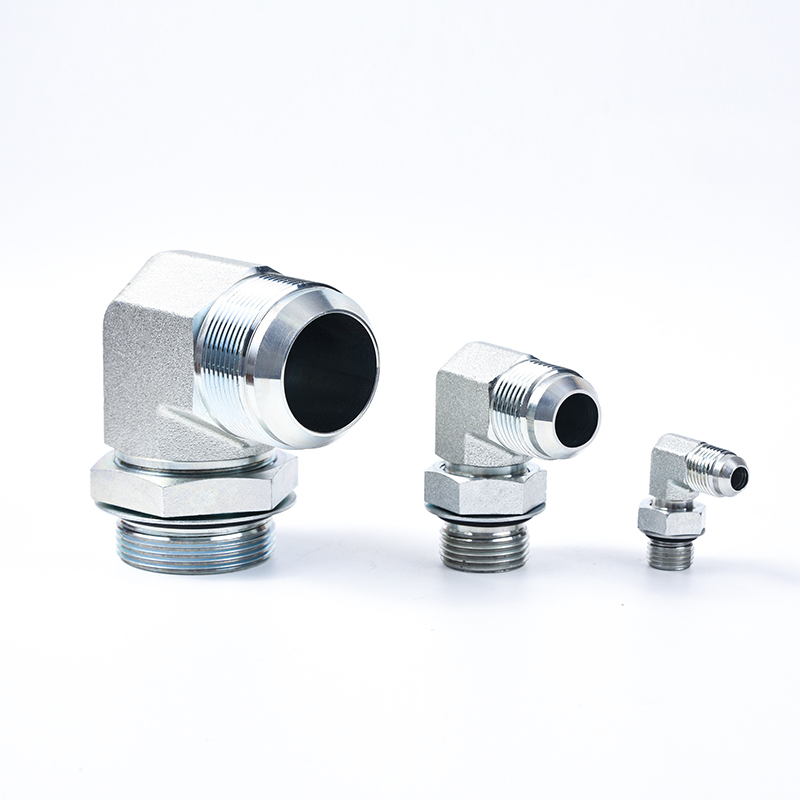

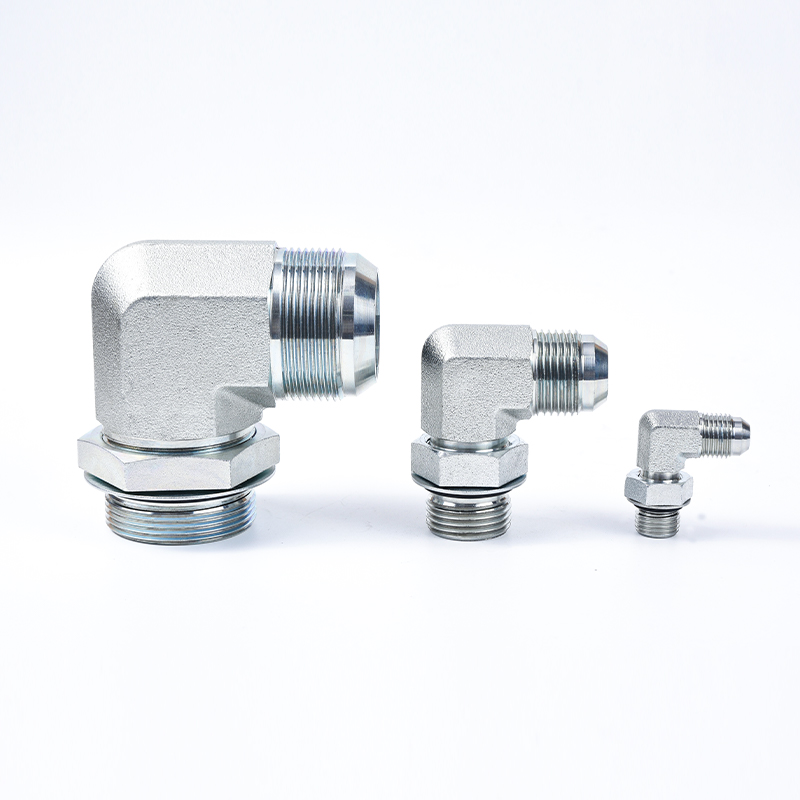

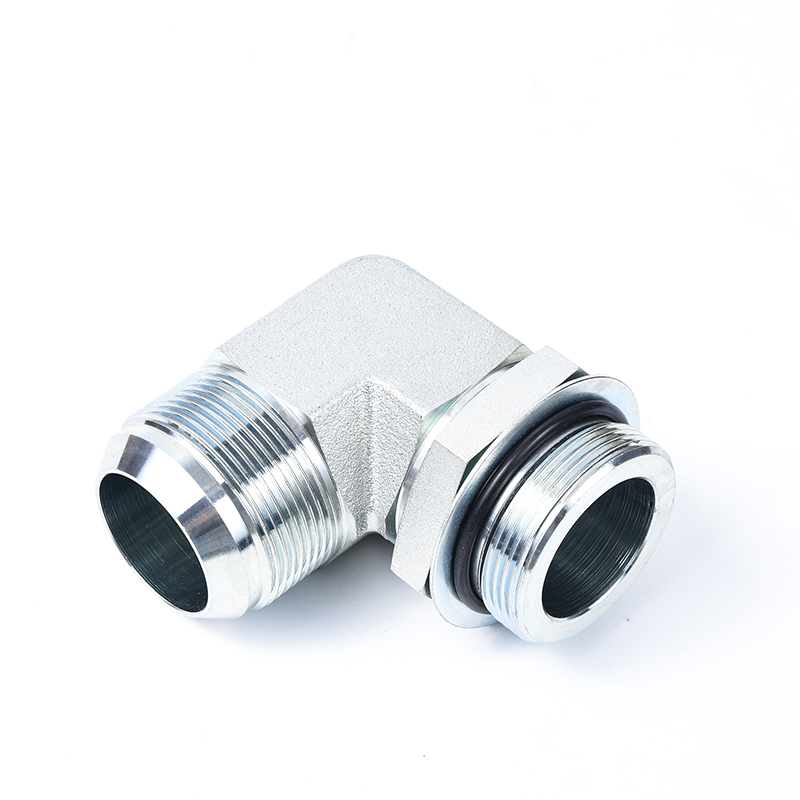

1JO9-OG 90° US JIC right angle adjustable coupling with US JIC male thread 74° male taper at one end and adjustable SAE male thread with O-ring seal (ISO11926-3) at the other end, in accordance with international standards: ISO8434-2, ISO11926, SAE J514, etc. Pressure range up to 420bar/6000PSI. Standard steel pipe connections from 6 to 42 mm, imperial 1/8" to 2".
+86-0574-62687101 / +86 13362460879 Contact Us
  • 1JO9 ISO 11926-3 American thread right angle adjustable
  • 1JO9 ISO 11926-3 American thread right angle adjustable
  • 1JO9 ISO 11926-3 American thread right angle adjustable
  • 1JO9 ISO 11926-3 American thread right angle adjustable
  • 1JO9 ISO 11926-3 American thread right angle adjustable
  • Description
  • Inquiry

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS

    E

    F

    F terminal

    A

    B

    S1

    S2

    1JO9-04-030G

    7/16"X20

    3/8"X24

    0903

    24.5

    28

    11

    14

    1JO9-040G

    7/16"X20

    7/16"X20

    O904

    24.5

    27.2

    11

    17

    1J09-04-050G

    7/16"X20

    1/2"X20

    0905

    26.6

    29.9

    14

    17

    1JO9-04-060G

    7/16"X20

    9/16"X18

    0906

    26.6

    31.8

    14

    19

    1JO9-05-040G

    1/2"X20

    7/16"X20

    0904

    26.6

    30

    14

    17

    1JO9-050G

    1/2"X20

    1/2"X20

    0905

    26.6

    29

    14

    17

    1JO9-05-060G

    1/2"X20

    9/16"X18

    0906

    26.6

    31.8

    14

    19

    1JO9-06-040G

    9/16"X18

    7/16"X20

    0904

    26.9

    30

    14

    17

    1JO9-06-050G

    9/16"X18

    1/2"X20

    0905

    26.9

    29.9

    14

    17

    1JO9-060G

    9/16"X18

    9/16"X18

    0906

    26.9

    31.8

    14

    19

    1JO9-06-080G

    9/16"X18

    3/4"X16

    0908

    30

    36.8

    19

    24

    1JO9-08-040G

    3/4"X16

    7/16"X20

    0904

    32

    33

    19

    17

    1JO9-08-060G

    3/4"X16

    9/16"X18

    0906

    33

    33.5

    19

    19

    1JO9-080G

    3/4"X16

    3/4"X16

    0908

    33

    36.8

    19

    24

    1JO9-08-100G

    3/4"X16

    7/8"X14

    0910

    34.8

    44

    22

    27

    1JO9-08-120G

    3/4"X16

    1.1/16"X12

    0912

    37.9

    51

    27

    32

    1JO9-10-080G

    7/8"X14

    3/4"X16

    0908

    38

    40

    22

    27

    1JO9-100G

    7/8"X14

    7/8X14

    0910

    37.8

    44

    22

    27

    1JO9-10-120G

    7/8"X14

    1.1/16"X12

    0912

    41

    51

    27

    32

    1JO9-12-080G

    1.1/16"X12

    3/4"X16

    0908

    45

    44

    27

    24

    1JO9-12-100G

    1.1/16"X12

    7/8"X14

    0910

    44.2

    47

    27

    27

    1JO9-120G

    1.1/16"X12

    1.1/16"X12

    0912

    44.2

    51

    27

    32

    1JO9-12-160G

    1.1/16"X12

    1.5/16"X12

    0916

    47.8

    54.5

    33

    41

    1JO9-140G

    1.3/16"X12

    1.3/16"X12

    0914

    47.5

    53

    30

    36

    1JO9-14-160G

    1.3/16"X12

    1.5/16"X12

    0916

    48.5

    54.5

    33

    41

    1JO9-16-120G

    1.5/16"X12

    1.1/16"X12

    0912

    48.8

    54.5

    33

    32

    1JO9-16-140G

    1.5/16"X12

    1.3/16"X12

    0914

    49

    56

    33

    36

    1JO9-160G

    1.5/16"X12

    1.5/16"X12

    0916

    48.8

    54.5

    33

    41

    1JO9-16-200G

    1.5/16"X12

    1.5/8"X12

    0920

    53.8

    59

    41

    50

    1JO9-20-160G

    1.5/8"X12

    1.5/16X12

    0916

    55.5

    59.5

    41

    41

    1JO9-200G

    1.5/8"X12

    1.5/8"X12

    0920

    55.3

    59

    41

    50

    1JO9-20-240G

    1.5/8"X12

    1.7/8"X12

    0924

    59.4

    63

    48

    55

    1JO9-240G

    1.7/8"X12

    1.7/8"X12

    0924

    62.5

    63

    48

    55

    1JO9-320G

    2.1/2"X12

    2.1/2"X12

    0932

    80

    76

    63

    70

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 1JO9 ISO 11926-3 American thread right angle adjustable suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 1JO9 ISO 11926-3 American thread right angle adjustable in bulk.
